SHIMANO

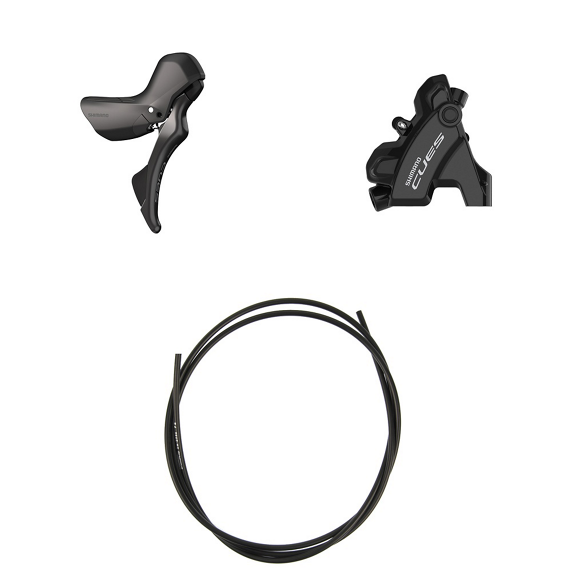

SHIMANO CUES U6030 10/11 Speed Flatmount Discless Straight Lever and Rear Caliper

TheStraight Lever and Rear Caliper SHIMANO CUES U6030 10/11 Speed Flatmount is a set designed to enhance the experience of learning cyclists. Inspired by... Read more
Regular price 5.269,00 Kč
Regular price Sale price 5.269,00 Kč
View full details

Description

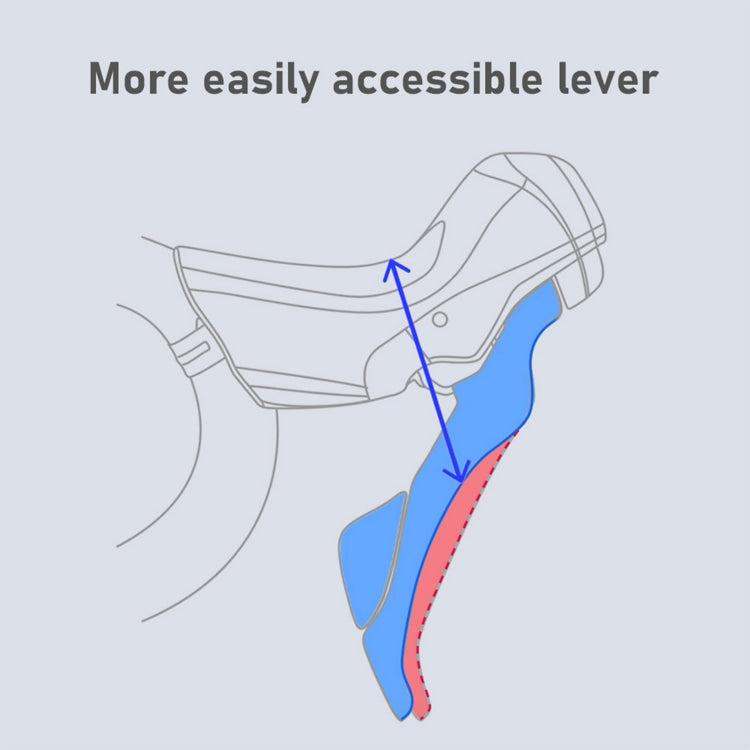

TheStraight Lever and Rear Caliper SHIMANO CUES U6030 10/11 Speed Flatmount is a set designed to enhance the experience of learning cyclists. Inspired by the technologies of the SHIMANO 105 series, the DUAL CONTROL LEVER offers reworked ergonomics to suit all hand sizes. Its streamlined design brings the lever closer to the handlebar, facilitating access and enhancing control.

The grip is comfortable and intuitive, thanks to a design based on in-depth studies of cyclists' morphology. Mechanical gear changes are smooth and precise, while the hydraulic disc brake guarantees constant, controlled braking power, whatever the weather or terrain.

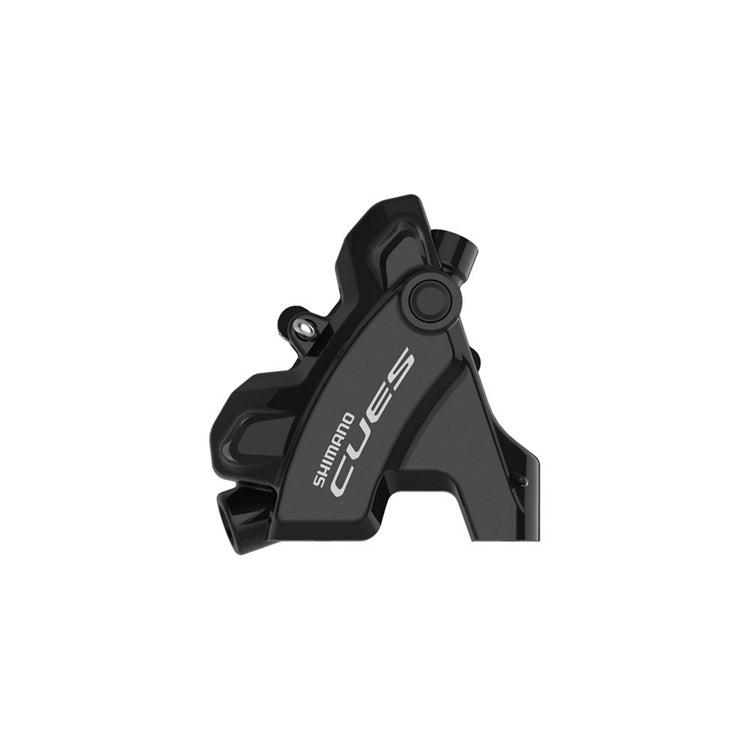

The BR-U6030-R Flat Mount rear caliper is specially designed for 160 mm discs. Its compact two-piston design eliminates the need for additional adapters, reducing weight while ensuring simple installation. This lever-brake duo delivers performance, safety and confidence on every ride.

Ref: 15042054553980

Informations techniques

GENERAL
Series: SHIMANO CUES U6030
Part Number :
IU60301DRRDRC170A
Type: Straight - Rear - Mechanical Gears - Hydraulic Brakes
Compatible only with LINKGLIDE 11/10 speed system

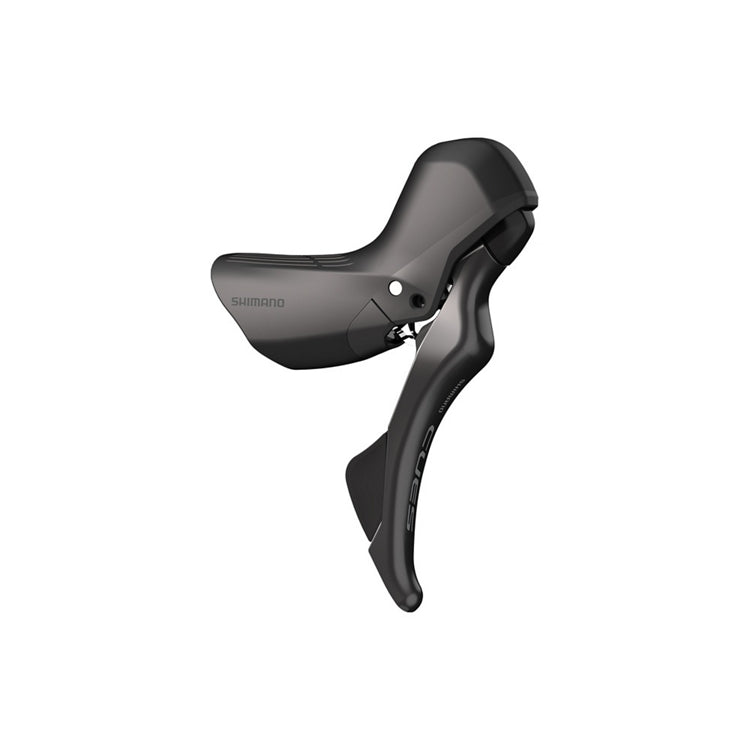

TRANSMISSION / LEVER
Part No. Manufacturer :
ST-U6030-R
Collar: 23.8-24.2mm
Speeds: 11/10
Technology: DUAL CONTROL LEVER and Reach adjustment
Derailleur cable: Optislick
Outer casing: OT-SP41 (manufacturer's recommendation)
Compatible rear derailleurs :
RD-U6020-10 for 2x10 mounting and 11-39-tooth cassette.
RD-U6000 for 1x10 mounting and 11-48 cassette
RD-M5130 for 1x10 mounting and 11-43 cassette
RD-U4010 1for 1x10 mounting and cassette 11-39

BRAKING / CALIPER
Reference Caliper : BR-U6030-R
Material : Aluminum
Mounting : Flat Mount
Technology: J-Kit / ONE WAY BLEEDING
Pistons : x2
Brake fluid : Mineral
Hose connection: Straight
Hose length: 1700mm
Brake hose: SM-BH59-JK-SSR
Resin Brake Pads
Recommended disc: SM-RT54 SM-RT30 160mm

Informations prix

Supplier suggested retail price in January 2025
