MAVIC COSMIC SL 45 DISC Tubeless Ready Rear Wheel (Centre Lock) 2025

The rear wheel MAVIC COSMIC SL 45 DISC combines aerodynamics, responsiveness and manoeuvrability, specifically designed to optimise performance with disc brakes.  Its 45 mm... Read more
17.873,00 CZK
17.873,00 CZK
View full details

Description

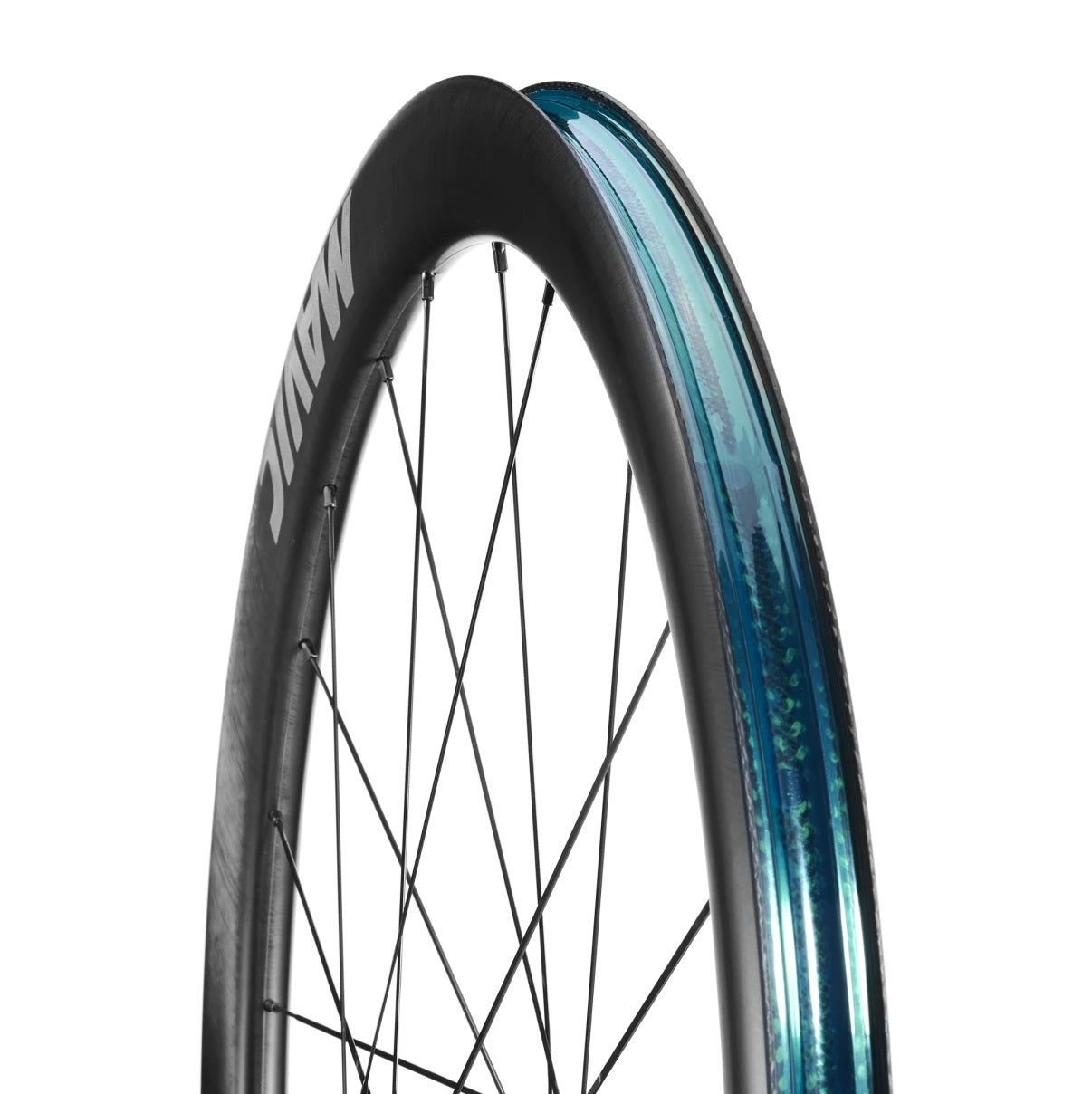

The rear wheel MAVIC COSMIC SL 45 DISC combines aerodynamics, responsiveness and manoeuvrability, specifically designed to optimise performance with disc brakes.

Its 45 mm carbon rim, inspired by NACA profiles, reduces aerodynamic drag, promoting high speeds and instant accelerations. The lightweight design minimises inertia, while the butted flat spokes optimise the wheel's responsiveness and stability. The rim benefits from a strategically positioned Adaptive Lay Up carbon layer and local reinforcement at the spoke holes,

Thanks to the Infinity hub platform, spoke tension is optimised for better stability and efficient power transfer. The ID360 freehub system ensures instant power transmission, ideal for powerful accelerations.

The UST Tubeless system and its new 23 mm internal width simplify the installation of tubeless tyres, offering more comfort and manoeuvrability while reducing friction and the risk of punctures.

Thanks to its rigid and versatile design, it excels on all terrains, from rolling roads to mountain passes.

Manufacturer Manual + Rim/Tyre Compatibility Chart

MAVIC Road Axle Adapters Manual

MAVIC UST Tubeless Manual

Ref: 15464267284860

Informations techniques

┘GENERAL
Rear Weight: 845 g
ASTM: category 2: road and paths with jumps under 15 cm in height
Maximum load: 120 kg (including bike weight)
Lifetime warranty and Crash Replacement (after registration)

┘RIM
Material: 100% carbon fibre with Adaptive Lay Up outer layer
Height: 45 mm
Internal width: 23 mm
External width: 32 mm
Drilling: traditional (front/rear 24 holes)
ETRTO size: 622x23
Tyre compatibility: UST Tubeless Ready (with Mavic tubeless rim tape) / Tubetype
Minimum tyre size: width 28mm - max pressure 5.5Bar/80PSI
Maximum tyre size: width 64mm - max pressure 3.25Bar/47PSI
Braking: disc

┘HUB
Shell material: aluminium
Shell design: INFINITY
Disc standard: Center Lock® only
Axle material: aluminium
Axle size: rear 12x142 - Convertible to quick release with adapters (not included)
Freehub technology: Instant Drive 360
Bearing technology: QRM automatic adjustment - sealed cartridge

┘SPOKES
Material: steel
Shape: straight, extra-flat, butted, anti-rotation
Nipples: steel, ABS, black
Lacing: 2-cross

┘KEY TECHNOLOGIES
►ADAPTIVE LAY UP: Strategically positioned carbon layer with local reinforcement at spoke holes. Strong at certain points, light everywhere else;
► INSTANT DRIVE 360: The Instant Drive 360 system ensures immediate power transfer, without inertia, with proven reliability and quick tool-free maintenance;
► INFINITY: Infinity hubs ensure uniform spoke tension, providing stability, smoothness and durability, without contact or parasitic noise, for simplified maintenance;
► QRM BEARINGS: Mavic's QRM technology uses high-precision double-sealed bearings, offering increased durability, low friction and minimal maintenance;
► UST SYSTEM: UST technology offers tubeless riding, reducing resistance, improving comfort and grip, while reducing rim weight by 20g;

┘INCLUDED
User guide
UST rim tape fitted to the wheel
UST valve not fitted to the wheel
Multi-function adjustment key with rear wheel

┘COMPATIBLE REFERENCES
Freehub body: convertible SRAM XD road (kit V2580101 sold separately)
Freehub body: convertible SHIMANO HG light road (kit V3850101 sold separately
Freehub body: convertible SHIMANO MS (kit V3990101 sold separately)
Freehub body: convertible CAMPAGNOLO ED (kit V3440101 sold separately)
Freehub body: convertible CAMPAGNOLO N3W (kit V4270101 sold separately)
Rear axle adapters: 12x142 convertible to 9x135 (kit V2510801 sold separately)
Rear axle adapters: 12x142 convertible to 12x135 (kit V2510901 sold separately)
;

Informations prix

*Supplier recommended retail price in September 2025
