SHIMANO

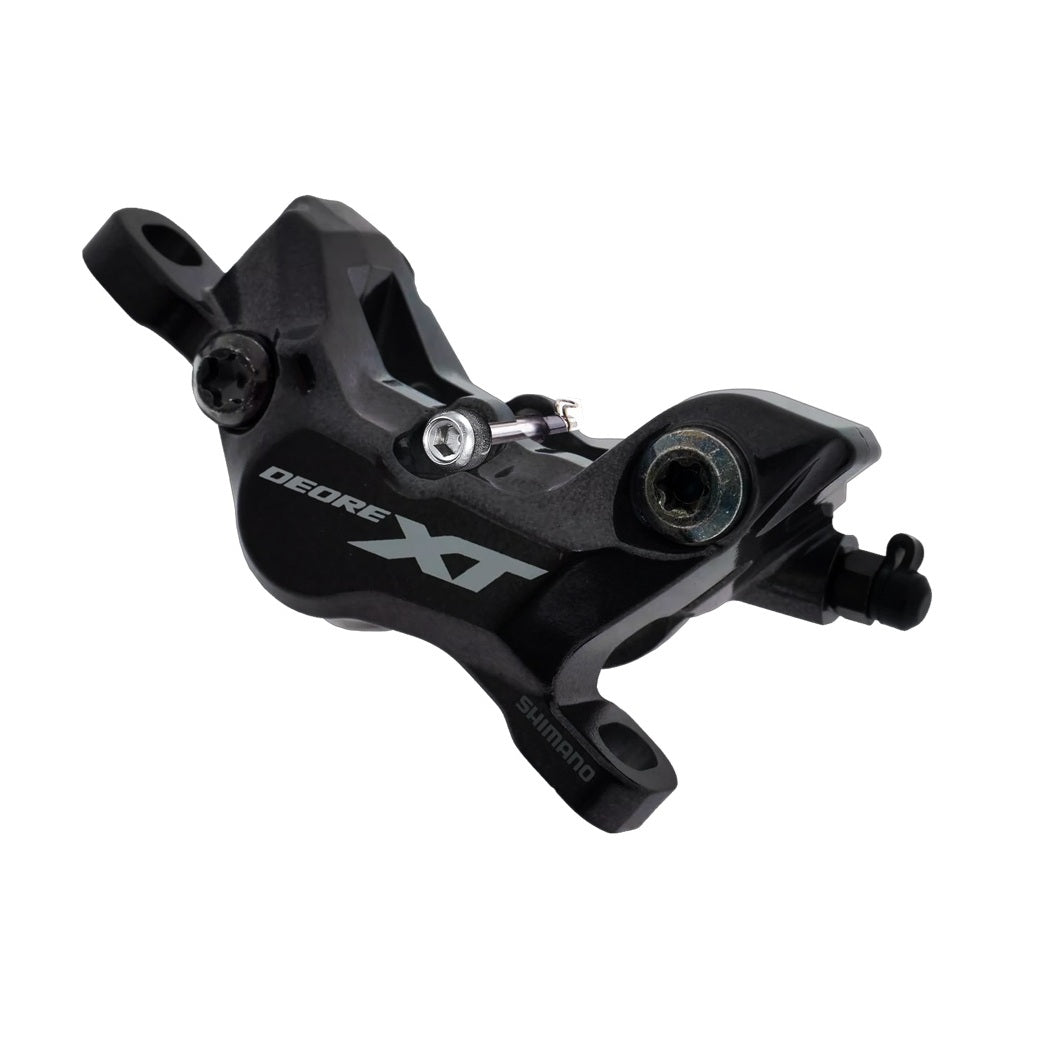

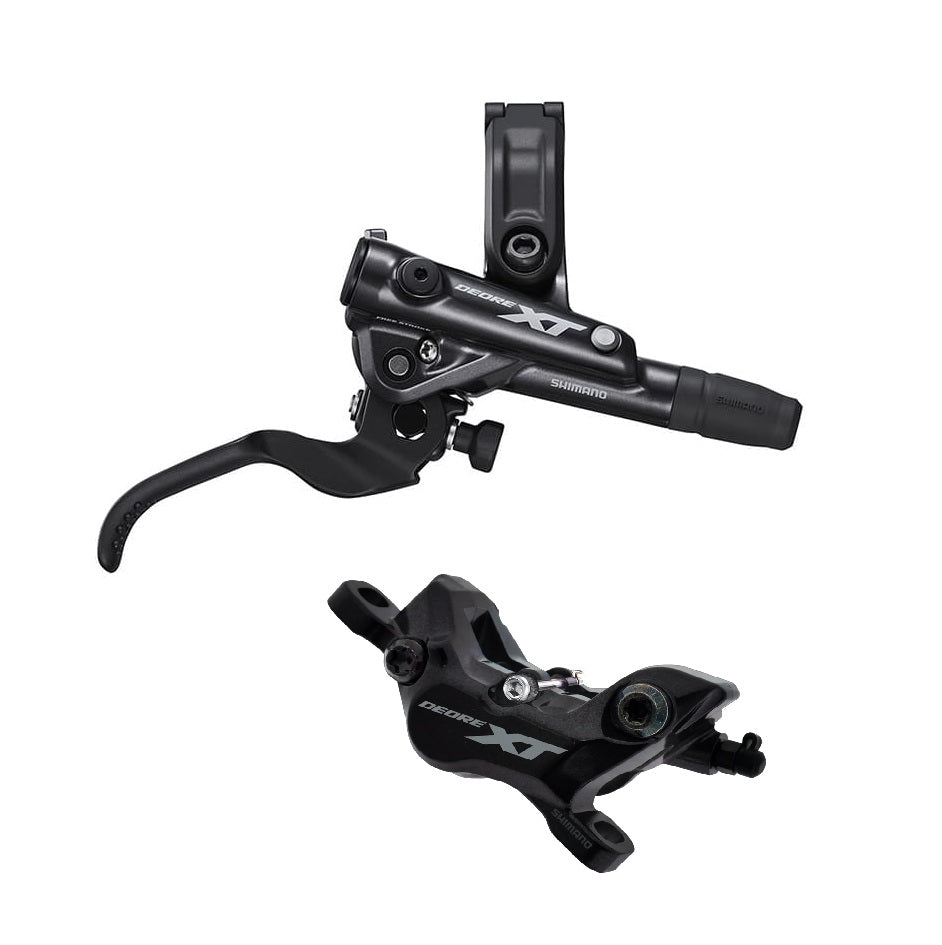

SHIMANO XT M8120 Rear Brake 4 Pistons

Réf. fabricant : IM8120JRRXSA170
The SHIMANO XT M8120 Rear Brake is designed to deliver consistent braking performance and reliable stopping power in all conditions. Its 4-piston calliper boosts... Read more
3.884,00 CZK
3.884,00 CZK
View full details

Description

The SHIMANO XT M8120 Rear Brake is designed to deliver consistent braking performance and reliable stopping power in all conditions. Its 4-piston calliper boosts confidence and control on descents, while the BL-M8100 lever, lightweight and intuitive, allows precise modulation to explore your limits with complete confidence.

The optimised lever pivot position and refined ergonomics, combined with I-SPEC EV technology, offer intuitive and versatile braking. The system is 10% stiffer than the M8000, even at high temperature, with rapid brake engagement thanks to a shorter stroke.

The tool-free adjustment of reach and stroke allows total adaptability for each user. The rapid piston return and four-piston design offer superior modulation for better control. Fitting is quick and easy thanks to the banjo-type connection and internal cable routing, making this brake a high-performing and practical choice for discerning cyclists.

An excellent choice for committed riding, such as Enduro or Trail!

▲ Pre-bled and pre-assembled brake ▲

► Manufacturer Manual

Ref: 7977572008102

Informations techniques

╝KEY FEATURES
► Lightweight and Powerful: Suited for enduro with intuitive modulation
► Intuitive Braking: Optimised lever position and refined ergonomics
► Increased Rigidity: 10% more rigid than the M8000, even at high temperature
► Easy Installation: Banjo connection and internal routing for quick setup.
► J-KIT: The J-Kit system makes routing the brake hose inside the frame easier, with a simplified connection to the calliper and a pre-fitted olive, for quick and easy installation
► I-SPEC EV: The I-SPEC EV mounting standard offers a clean cockpit, adaptable to all riders thanks to a generous adjustment range, improving comfort and focus with an ergonomic design and increased rigidity for optimal control
► REACH ADJUST: The brake lever with reach adjustment allows the distance between the grip and the lever to be set, adapting to all hand sizes and riding preferences for optimal braking and gear shifting
► SERVOWAVE ACTION: The SERVOWAVE lever enables rapid pad contact with the rotor, then multiplies braking power for increased control with less lever movement
► ONE WAY BLEEDING: System designed to prevent air bubbles in the hydraulic circuit, ensuring a quick and clean bleed thanks to a one-way oil path and a funnel-shaped tool
► FREE STROKE: Adjust the gap between the initial lever position and the pad contact point according to hand size, riding style and personal preferences╔

┘GENERAL
• Series: Deore XT
• Manufacturer Reference:

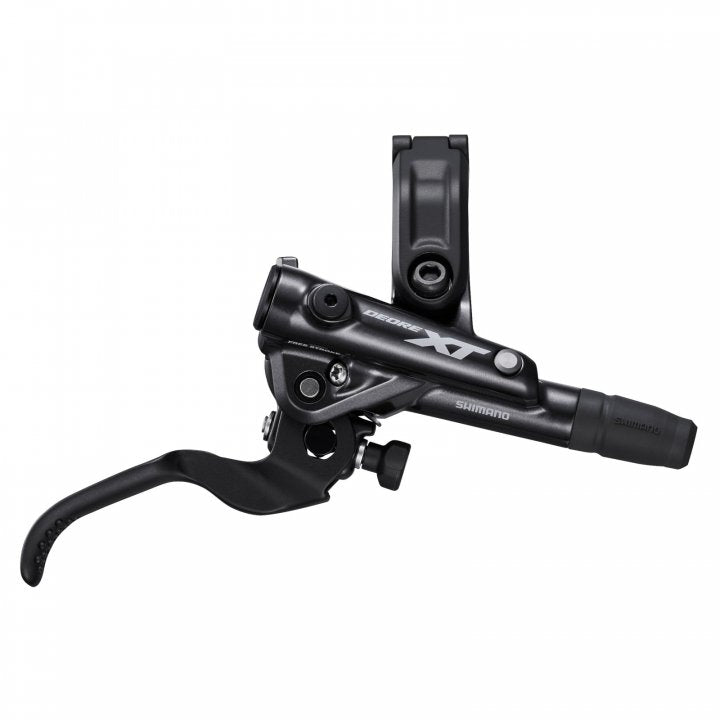

_Lever: BL-MT8100
_Calliper: BR-MT8120
• Weight:
_Lever: 105g
_Calliper: 141g
_Lever/Calliper/Hose Assembly: 394g for a front brake with 800mm hose
• Materials:
_Lever: Aluminium
_Calliper: Aluminium
_Pistons: Ceramic┌

┘SPECIFICATIONS
• Brake Lever/Gear Shifter Integration: I-SPEC EV
• Lever Length: 2 Fingers
• I-SPEC EV Adjustment Angle: 20°
• Number of Pistons: 4
• Calliper Mount: PostMount (PM)
• Compatible Pads: N03A-RF, N04C-MF, D03S-RX, D02S-MX
• Recommended Brake Fluid: Shimano Mineral Oil
• Hoses: 1700mm - SM-BH90-SBM - Banjo Connection
• Min./Max. Rotor Ø: 160mm to 220mm (combined with required adaptors)
• Recommended Rotor: RT-MT800 (not included)
• J-Kit Pre-bleed: Yes┌
;
