SHIMANO

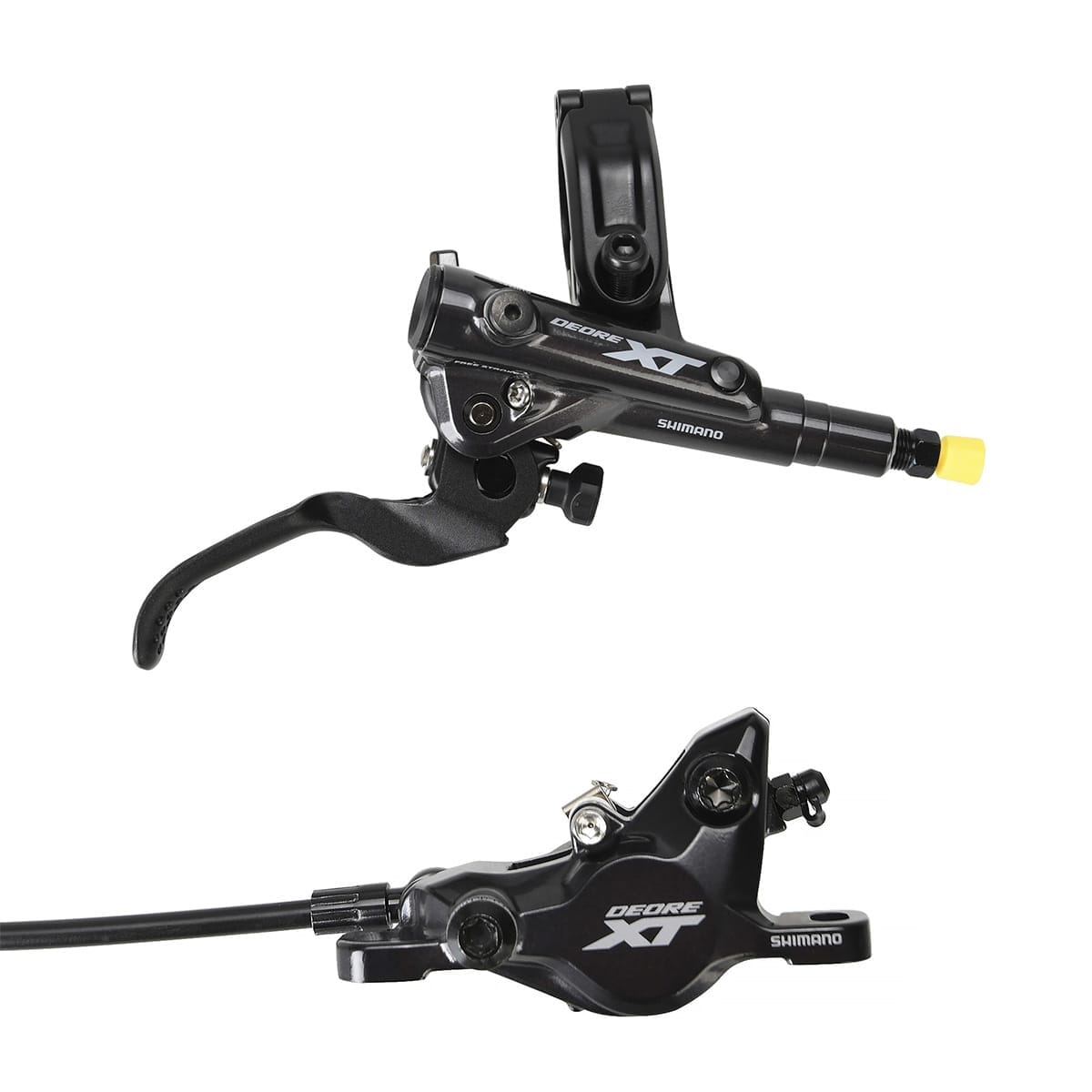

Rear brake SHIMANO XT M8100 J-Kit

Réf. fabricant : IM8100JRRXRA170

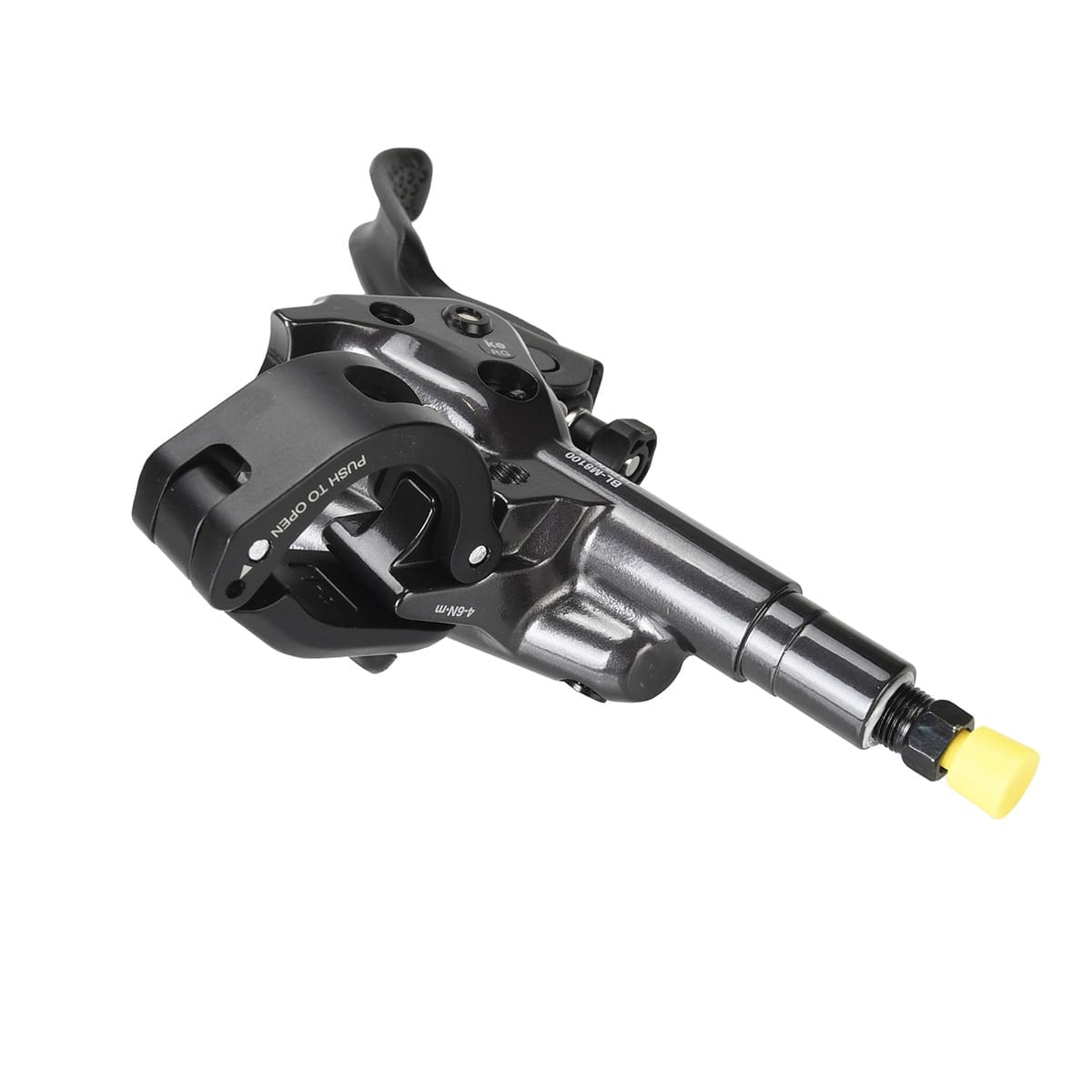

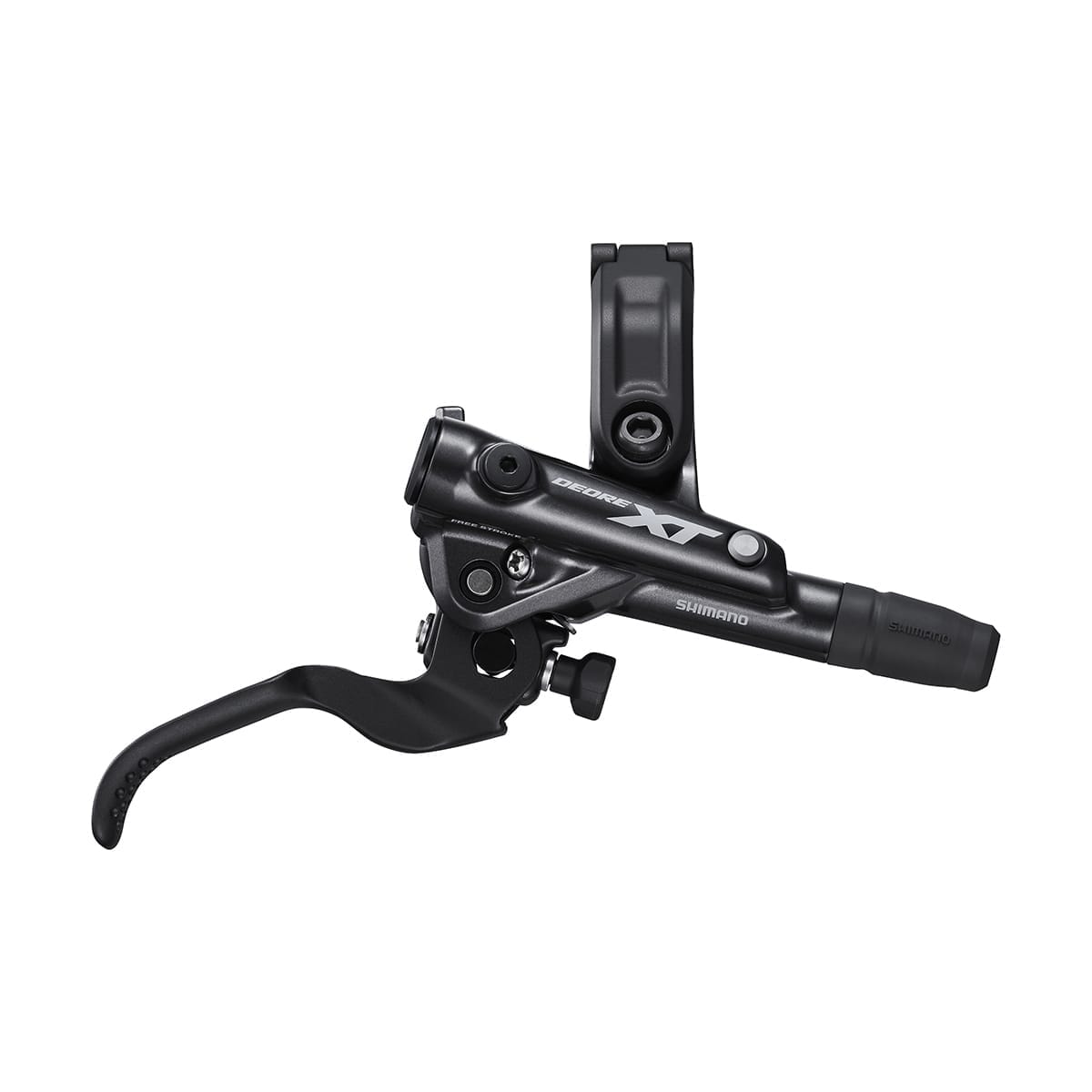

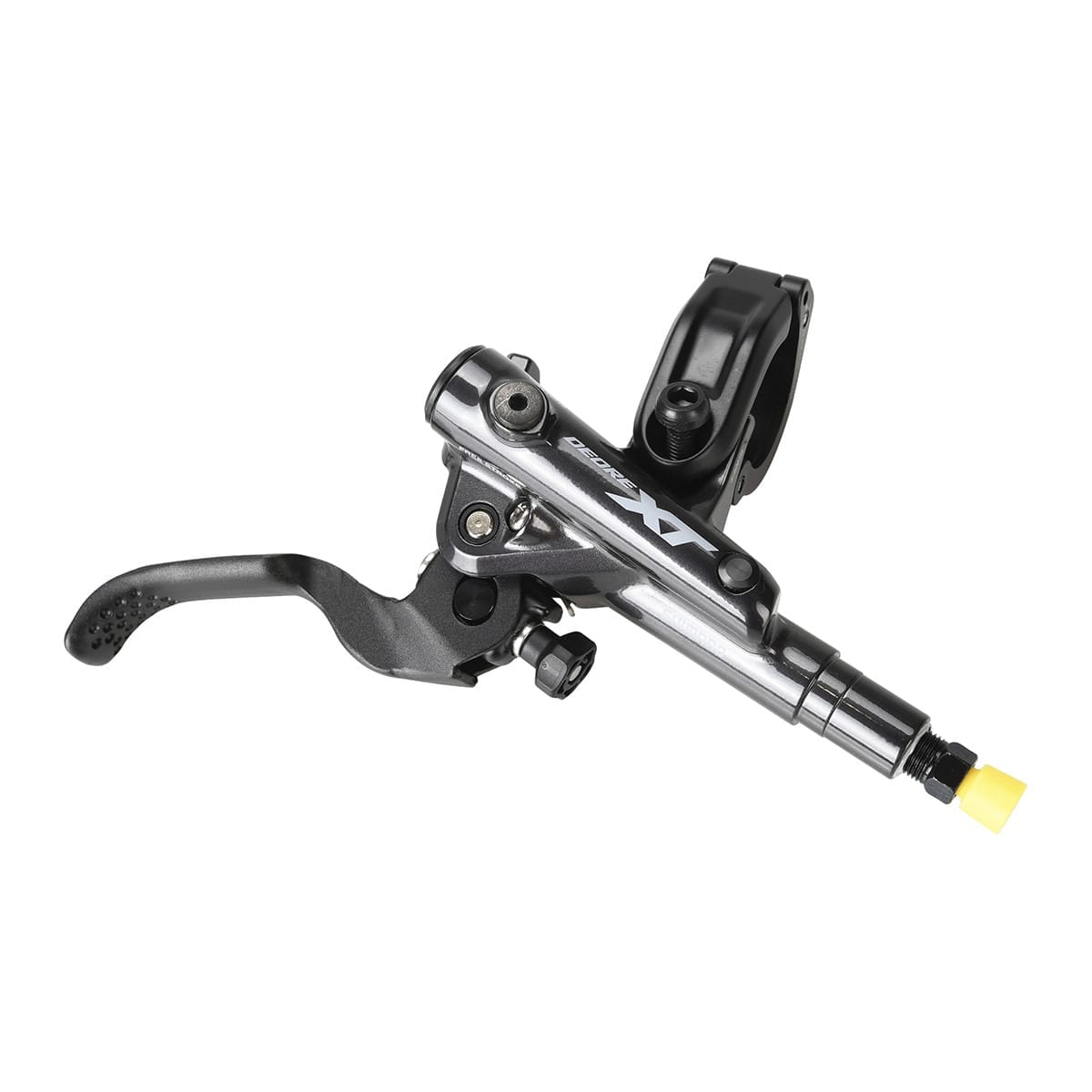

The Rear Brake SHIMANO XT M8100 combines lightness and stopping power, ideal for cross-country to All Mountain/Trail. Le BL-M8100 lever lever offers intuitive modulation, allowing... Read more
Regular price 3.106,00 CZK
Regular price Sale price 3.106,00 CZK
View full details

Description

The Rear Brake SHIMANO XT M8100 combines lightness and stopping power, ideal for cross-country to All Mountain/Trail. Le BL-M8100 lever lever offers intuitive modulation, allowing riders to explore their limits with confidence. Its optimized position and refined ergonomics, together with I-SPEC EVtechnology, ensure intuitive, versatile braking for all types of terrain.

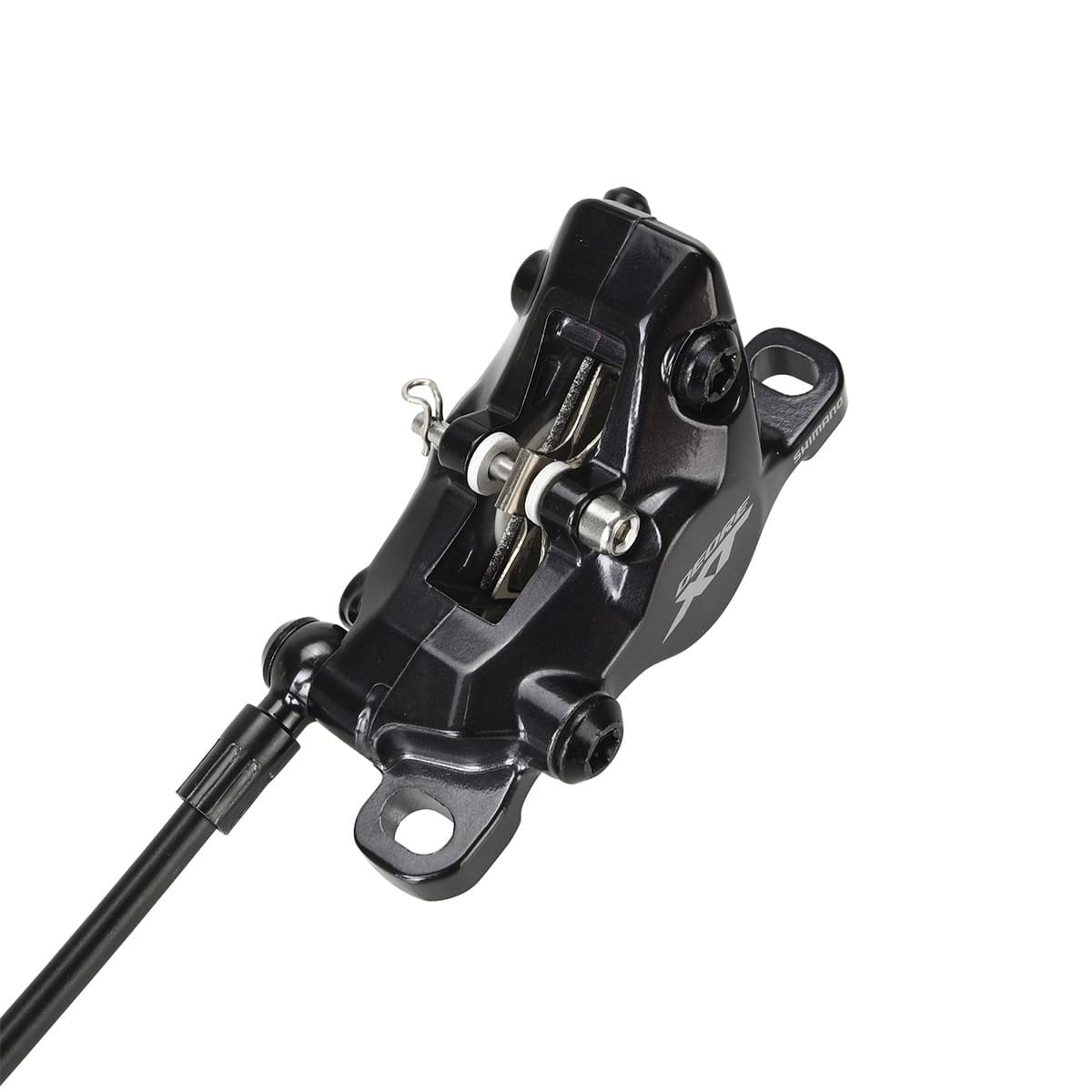

The caliper M8100Although lightweight, it guarantees reliable stopping power in all conditions. It's 10% stiffer than the M8000, even at high temperatures, with faster brake engagement thanks to a shorter stroke. Tool-free adjustment of reach and stroke provides total adaptability for every user.

Fast piston return and dual-piston design offer superior modulation for better control. Assembly is quick and easy thanks to the banjo-style connection and internal cable routing, making this pair of brakes a high-performance, practical choice for demanding cyclists.

An excellent choice for all-round riding!

Manufacturer's manual

Ref: 7977571745958

Informations techniques

╝FEATURES
► Lightweight and powerful: Suitable for cross-country with intuitive modulation
► Intuitive braking: Optimized lever position and refined ergonomics
► Increased rigidity: 10% stiffer than the M8000, even at high temperatures
► Easy assembly: banjo connection and internal wiring for rapid installation.
► J-KIT: The J-Kit system facilitates the passage of the brake hose inside the frame, with a simplified connection to the caliper and a pre-mounted olive, for quick and easy installation
► I-SPEC EV: The I-SPEC EV mounting standard offers a streamlined cockpit, adaptable to all riders thanks to a generous adjustment range, improving comfort and concentration with ergonomic design and increased rigidity for optimal control
► REACH AJUST: Brake lever with reach adjustment allows the distance between grip and lever to be adjusted, adapting to all hand sizes and riding preferences for optimal braking and gear shifting
► ACTION SERVOWAVE: SERVOWAVE lever enables rapid pad contact with the rotor, then multiplies braking power for increased control with less lever movement
► ONE WAY BLEEDING: System designed to prevent air bubbles in the hydraulic circuit, ensuring fast, clean bleeding thanks to a unidirectional oil path and funnel-shaped tool
► FREE STROKE: Adapt the gap between initial lever position and pad contact point according to hand size, type of practice and personal╔ preferences.

┘GENERAL
- Series: Deore XT
- Part Number :
_Lever: BL-MT8100
Caliper: BR-MT8100
- Weight :
_Lever: 105g
Stirrup: 121g
Lever/caliper/hose assembly: 374g for a front brake with 800mm hose
- Materials:
_Lever: Aluminum
Stirrup: Aluminum
Pistons: Ceramic┌

┘FEATURES
- Brake lever/gear lever integration: I-SPEC EV
- Lever length: 2 Fingers
- I-SPEC EV adjustment angle: 20°.
- Number of pistons: 2
- Stirrup mounting: PostMount (PM)
- Pads : G05A-RX, G04S-MX, J05A-RF, J04C-MF
- Recommended brake fluid: Shimano mineral oil

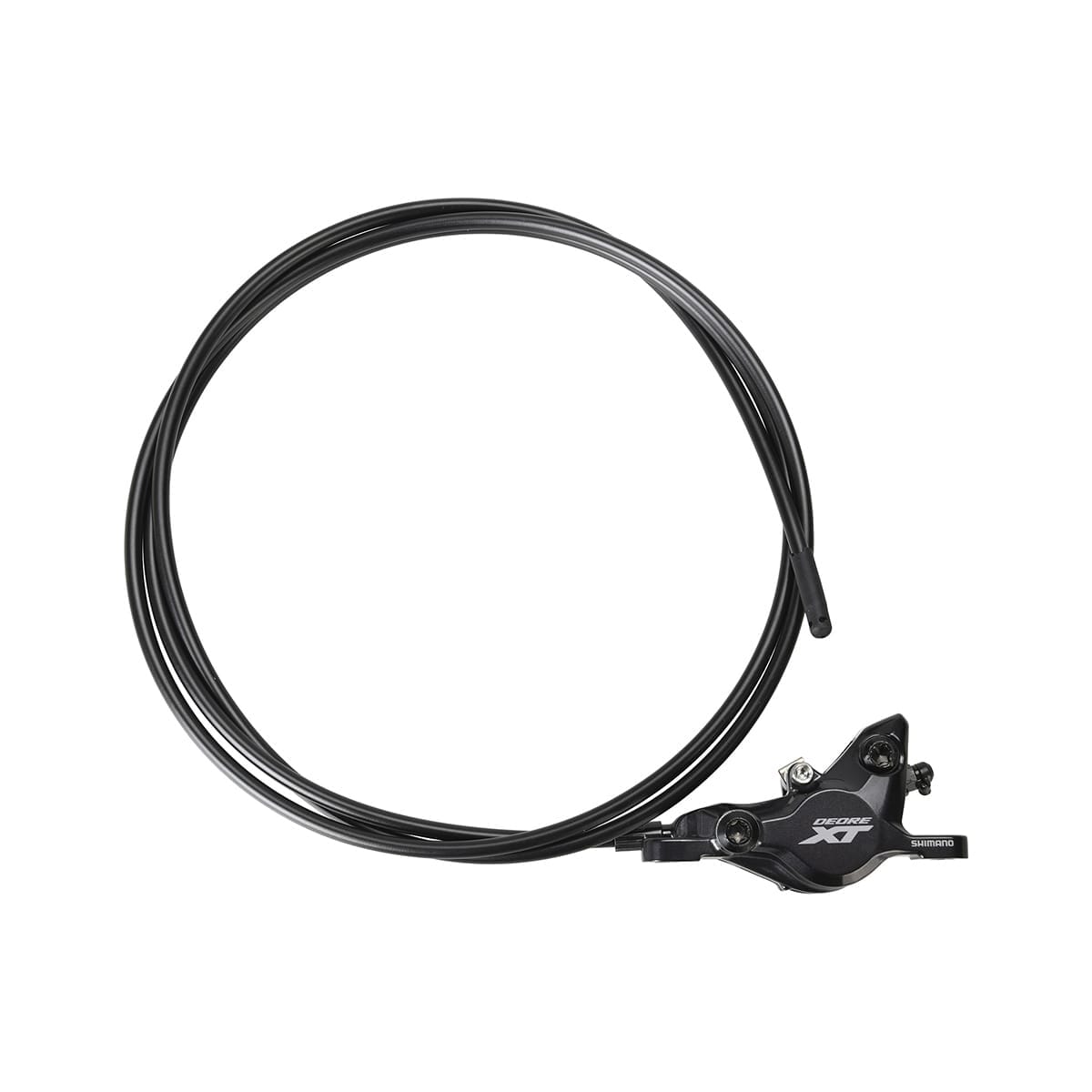

- Hoses: 1700mm - SM-BH90-SBM - Banjo fitting
- Disk Ø min./max. 160mm to 220mm (combined with adapters required)
- Recommended disc: RT-MT800 (not supplied)
- J-Kit pre-purge : Yes┌

Informations prix

*Recommended retail price February 2024

Overall rating: 4.3333335 out of 5 based on 9 reviews.

AI-Generated Review Summary

Summary topics

Review topics: ["brakes", "range", "evolution"].

Review highlights

Reviews

XT Brake

"For my needs, the Shimano XT brakes are the best."

Aurelien12200 (5/5)

smooth rotation AND 1/2 rotation

"I bought this kit after a leak on an XT-8000 caliper (this model is no longer available; it has been replaced by the new 8100 series). I notice that the XT series is evolving gradually (double-sided lever mount; the old single-sided version lacked a bit of rigidity), on the caliper the hose connection now runs internally (toward the wheel) AND the lever mount rotates 180° (I-Spec II vs. I-Spec EV?), with the screw going over the top... BUT I’m still trying to figure out how to mount the shifter (8000 series – 11-speed) on the new lever. I’m afraid it might not be compatible. If that turns out to be the case, this incompatibility between Shimano’s “XT” generations is really stupid, especially since the 8100 series shifter only comes in 12-speed! It’s a shame because if you have to “upgrade” the entire bike whenever a single part is defective, it’s basically disposable.

Igri38 (5/5)

Brakes

"Brakes work great, fast delivery. Good brand"

Mimijazz (5/5)

A big disappointment

"The Shimano shifters have a new design and, unfortunately, aren't compatible with the SLX shifters already on the bike. Too bad—that's €300 down the drain..."

Anonymous (1/5)

Great

"The best. SRAM still has some work to do before it catches up. Personally, I've switched to SRAM front and rear."

Anthony2929 (5/5)

Excellent

"A high-performance brake that's easy to install. I have it on my electric mountain bike. It makes me feel safe."

Yannbon (5/5)

Top

"Really impressed. The perfect kit for routing the hose internally."

Me25 (5/5)

Top-notch performance for the price

"Installed on the rear to complement a 4-piston XT on the front, it’s powerful and responsive (installed as a replacement for an MT400). Much more ergonomic 2-finger lever. It performs consistently even on challenging XC descents. Probikeshop is top-notch."

Yoyo52 (4/5)

Same operation as the M8000

"There's no significant difference in performance compared to the older XT M8000 models. However, the cable routing to the rear caliper is now better integrated with the frame (running seamlessly along it), making it both more aesthetically pleasing and more functional." I recommend this product, even though, as with the older models, I would have liked a bit more bite."

Lionel (4/5)
