PRAXIS M30 T47 68 mm crankset
Strictly compatible with PRAXIS M30 crank axles, the PRAXIS M30 bottom bracket bottom bracket features a high-quality design, including 7075-T6 aluminum cups. It incorporates...
Read more
Regular price
2.133,00 Kč
Regular price
Sale price
2.133,00 Kč
Unit price
per
Couldn't load pickup availability
Description

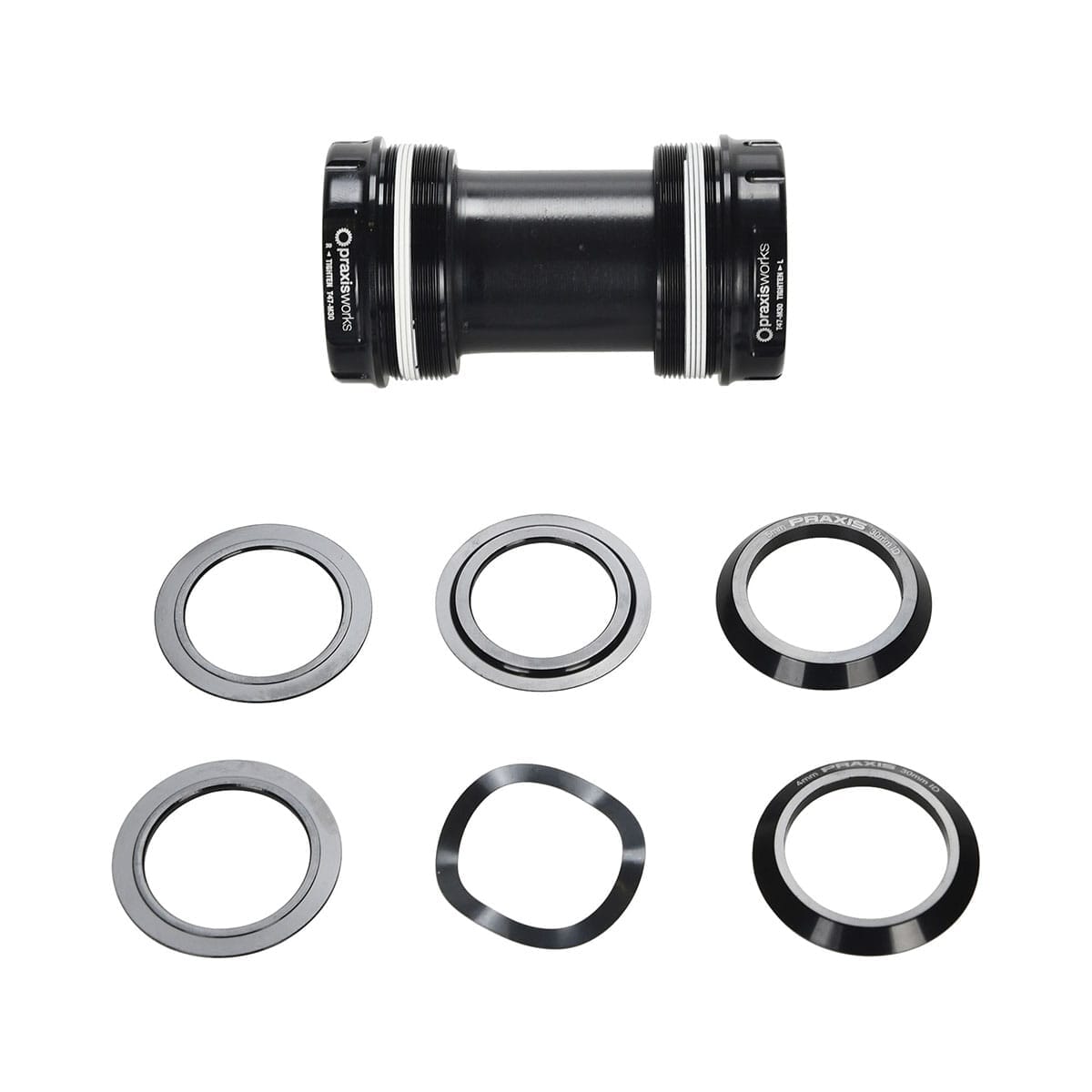

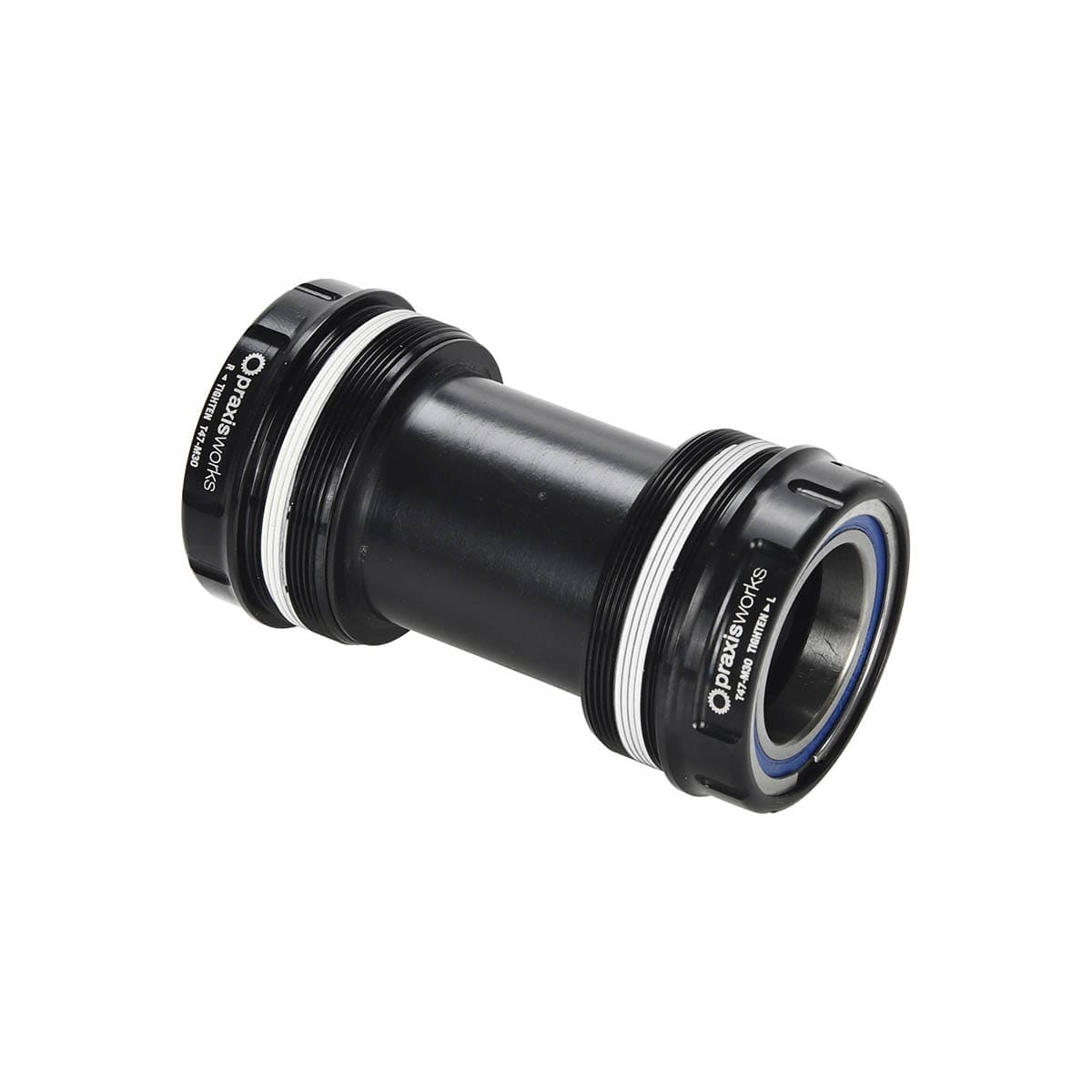

Strictly compatible with PRAXIS M30 crank axles, the PRAXIS M30 bottom bracket bottom bracket features a high-quality design, including 7075-T6 aluminum cups. It incorporates steel bearings.
It is designed for installation of a Praxis M30 crank in a 47 mm T47 road bike frame. The diameter of the axle is specific: 30mm on the left-hand side, reduced to 28mm on the right.
It is designed for installation of a Praxis M30 crank in a 47 mm T47 road bike frame. The diameter of the axle is specific: 30mm on the left-hand side, reduced to 28mm on the right.
Compatibility chart
| A - Diameter (mm) | B - Width (mm) | Assembly | Standard |
| 34,8 | 68 | screw-on | BSC / BSA |
| 34,8 | 73 | screw-in | BSC / BSA |
| 34,8 | 83 | screw-in | BSC / BSA |
| 34,8 | 100 | screw-in | BSC / BSA |
| 27 | 95,5 | insert | BB 96 (Trek) |
| 41 | 92 | insert | PF 92 |
| 42 | 68 | insert | BB 30 |
| 42 | 73 | insert | BB 30 |
| 46 | 68 | insert | PF 30 |
| 46 | 73 | insert | PF 30 |
 |
|||
Ref: 9254626820445
