SHIMANO SAINT M820 J-KIT Brake Set Without Disc

The SHIMANO SAINT M820 Brake Set is the preferred choice of Gravity cyclists, offering ultimate braking power and nuanced modulation in all conditions. Designed... Read more
11.137,00 CZK
11.394,00 CZK 11.137,00 CZK
View full details

Description

The SHIMANO SAINT M820 Brake Set is the preferred choice of Gravity cyclists, offering ultimate braking power and nuanced modulation in all conditions.

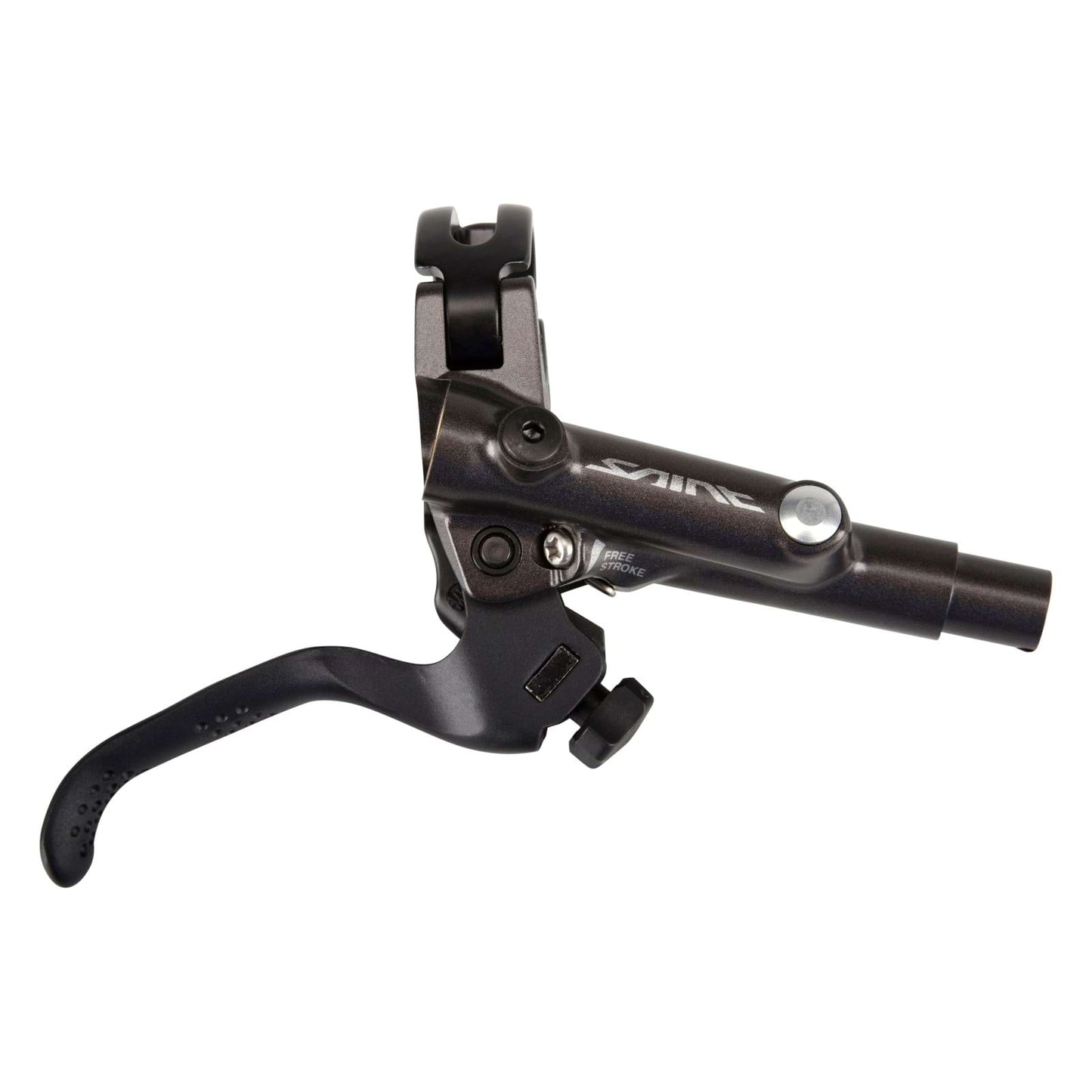

Designed for rough terrain, it is fitted with textured BL-M820 levers with Reach Adjust and pad contact point adjustment, as well as I-SPEC B compatibility. This adjustment allows the distance between the grip and the lever to be adapted, accommodating all hand sizes and riding preferences for optimal braking.

This hydraulic disc brake features a rigid 4-piston ceramic calliper and ICE TECHNOLOGIES technology, which reduces heat build-up for consistent braking, preventing fade during intense and prolonged descents. The SERVOWAVE action enables rapid pad contact with the rotor, then multiplies braking power for greater control with less lever movement.

Its robust construction and advanced features make it an essential choice for Downhill and demanding disciplines, guaranteeing safe and high-performance braking.

► Manufacturer Manual

Ref: 14967648190844

Informations techniques

╝KEY FEATURES
► Safety on Rough Terrain: Designed for downhill and demanding disciplines
► J-KIT: The J-Kit system makes it easier to route the brake hose inside the frame, with a simplified connection to the calliper and a pre-installed olive, for quick and easy installation
► I-SPEC: Integrated mounting system for gear shifter and brake lever, offering a clean look, more handlebar space and reduced weight
► ICE TECHNOLOGIES: Shimano ICE TECHNOLOGIES components reduce heat build-up, ensuring consistent braking and preventing fade during intense and prolonged descents
► Reach Adjust: The brake lever with reach adjustment allows you to set the distance between the grip and the lever, adapting to all hand sizes and riding preferences for optimal braking and gear shifting
► SERVOWAVE Action: The SERVOWAVE lever enables rapid pad contact with the rotor, then multiplies braking power for greater control with less lever movement
► ONE WAY BLEEDING: System designed to prevent air bubbles in the hydraulic circuit, ensuring a fast and clean bleed thanks to a one-way oil path and a funnel-shaped tool
► FREE STROKE: Adjust the gap between the initial lever position and the pad contact point to suit hand size, riding style and personal preferences╔

┘GENERAL
• Series: SAINT
• Manufacturer Reference:
_Lever: BL-M820-B (x2)
_Calliper: BR-M820 (x2)
• Weight:
_Lever: 104g
_Calliper: 153g
_Lever/Calliper/Hose Assembly: 407g for a front brake with 800mm hose
• Materials:
_Lever: Aluminium
_Calliper: Aluminium
_Pistons: Ceramic┌

┘SPECIFICATIONS
• Brake Lever/Gear Shifter Integration: I-SPEC B
• Lever Length: 2 Fingers
• Number of Pistons: 4
• Calliper Mount: PostMount (PM)
• Pads: H03A-RF, H03C-MF
• Recommended Brake Fluid: Shimano Mineral Oil
• Hoses: 1000mm (front), 1700mm (rear) - SM-BH90-SBLS - Banjo Fitting
• Min./Max. Rotor Diameter: 160mm to 220mm (combined with required adapters)
• Recommended Rotor: SM-RT99, SM-RT86 (not included)
• J-Kit Pre-bleed: Yes┌
;
