SHIMANO

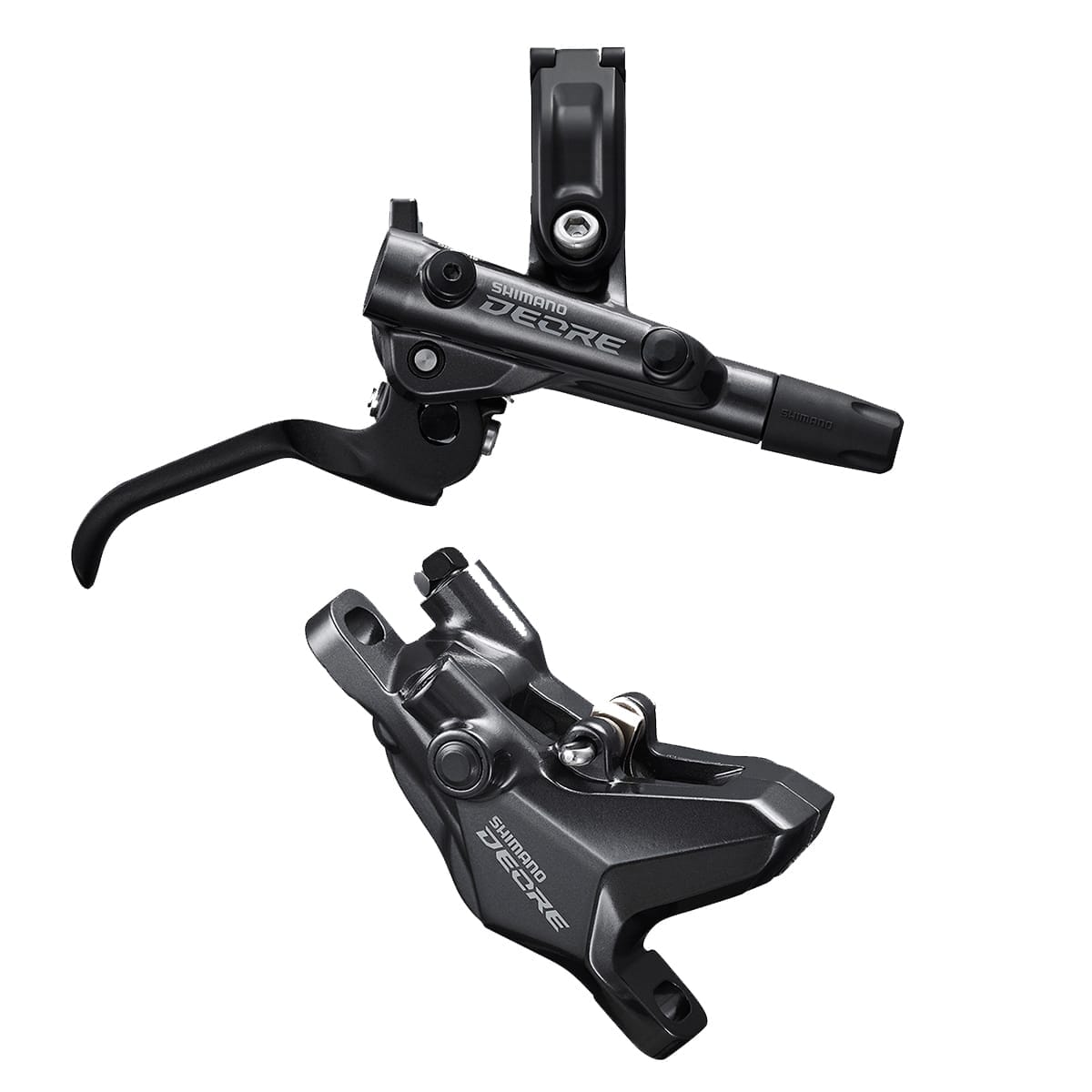

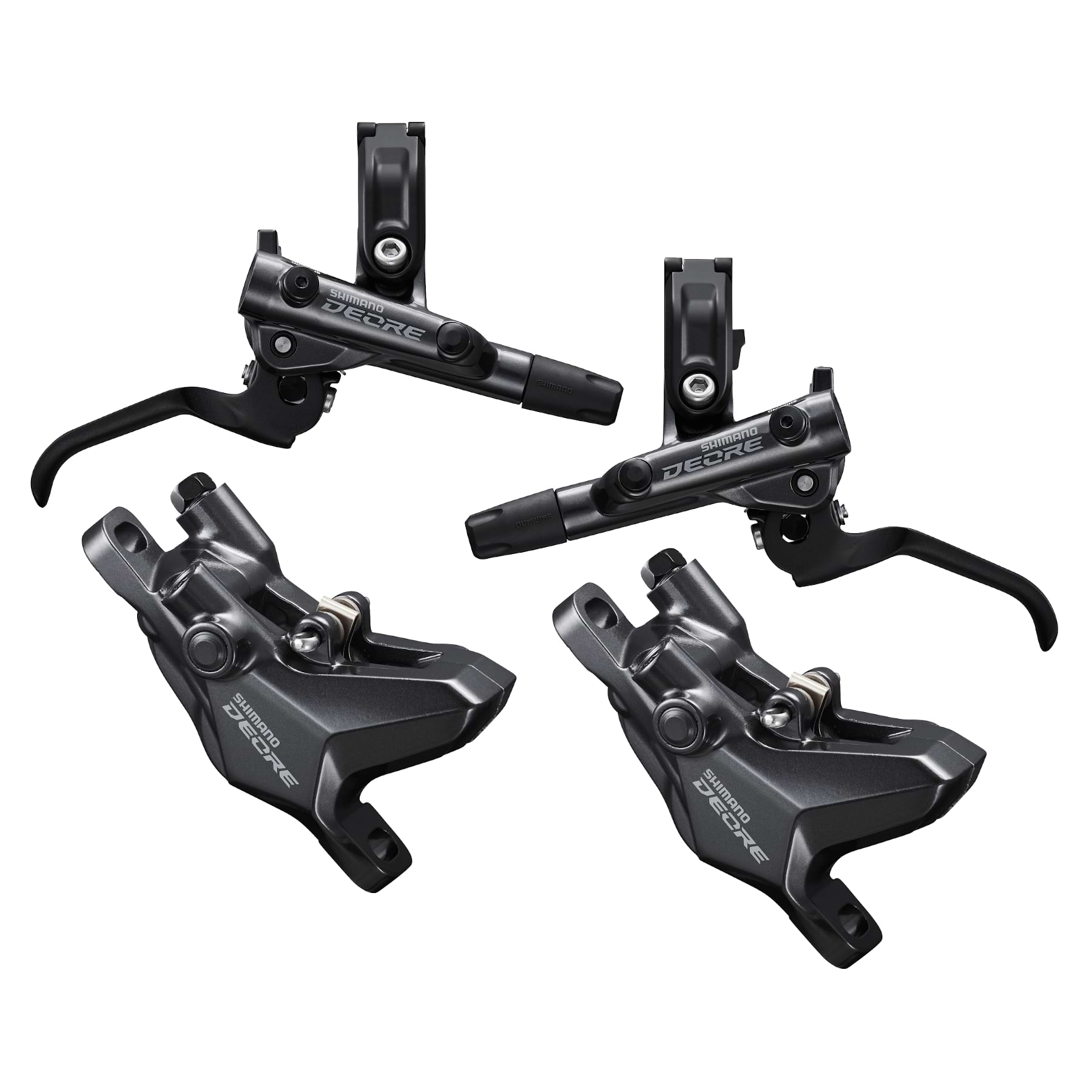

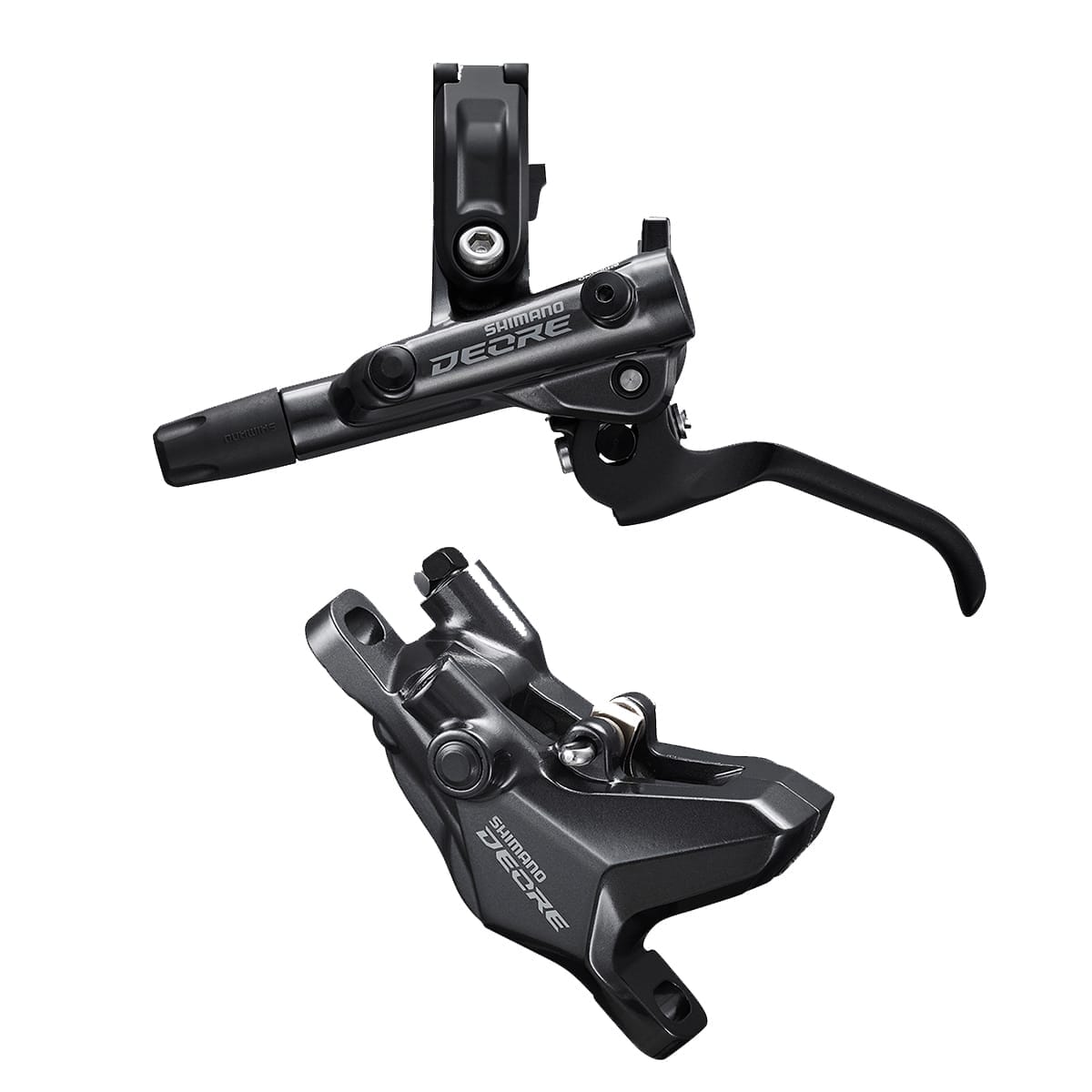

SHIMANO DEORE M6100 J-KIT Brake Set Without Disc

The SHIMANO DEORE M6100 Brake Set is designed to deliver intuitive and powerful braking, allowing cyclists to stay focused on the trail. The BL-M6100... Read more
4.016,00 CZK
4.016,00 CZK
View full details

Description

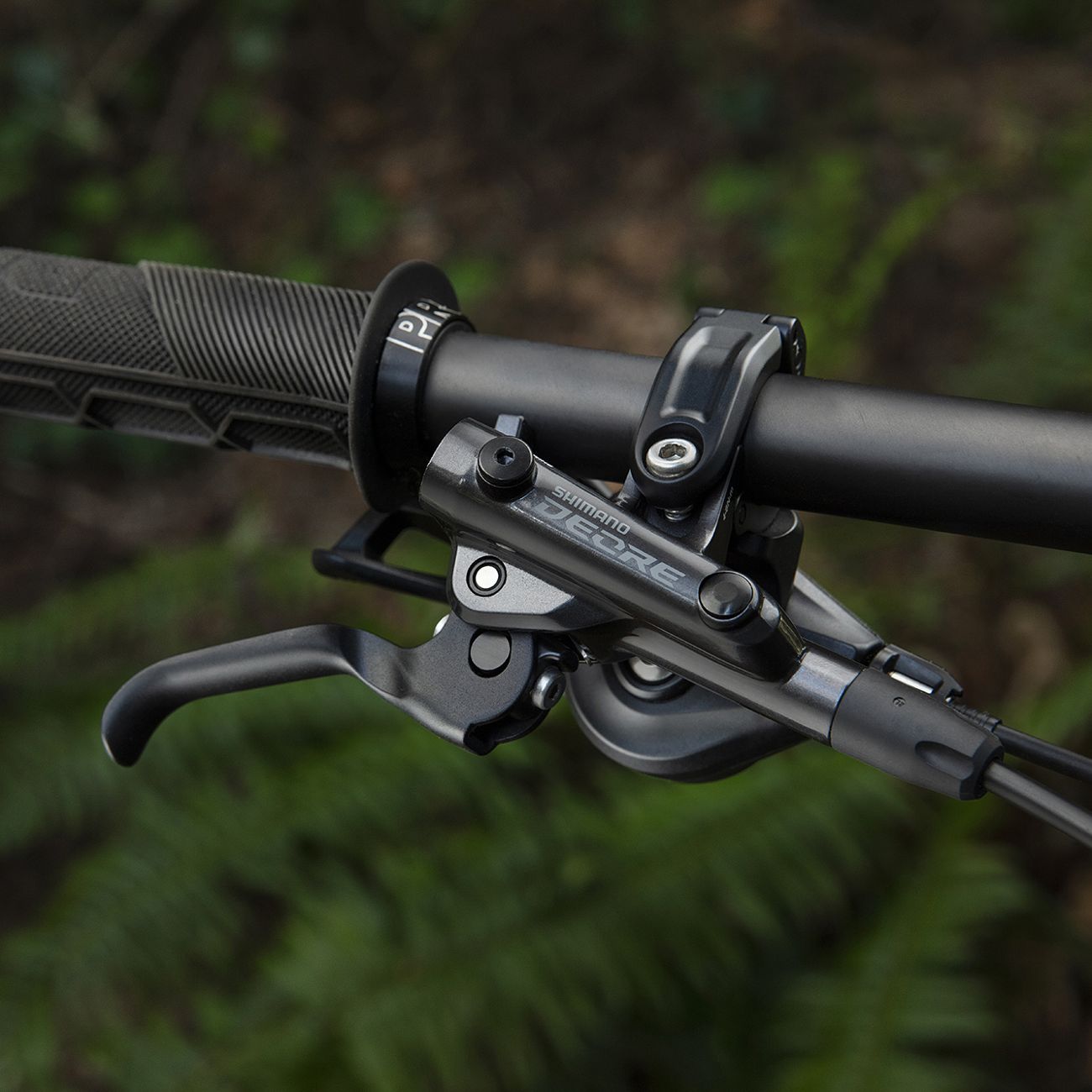

The SHIMANO DEORE M6100 Brake Set is designed to deliver intuitive and powerful braking, allowing cyclists to stay focused on the trail. The BL-M6100 lever ensures rapid brake engagement with a shortened travel, while the I-SPEC EV gear shifter lever offers a wider adjustment range for optimal personalised setup.

The action-optimised, customisable cockpit, with an additional contact point, makes the brake lever more rigid. The 10-degree rotation angle adjustment range for the I-SPEC EV derailleur control allows precise adaptation to each cyclist's preferences.

The lightweight, 2-piston DEORE M6100 calliper delivers consistent braking performance and reliable stopping power in all conditions. The rapid piston return ensures superior modulation, providing the necessary power without adding unnecessary weight. This brake combines lightness and performance, meeting the demands of modern cyclists.

Ref: 14967753408892

Informations techniques

╝KEY FEATURES
► Intuitive Braking: Quick engagement and shortened travel to stay focused
► Superior Modulation: Fast piston return for reliable and light power
► Lightweight Calliper: 2 pistons for consistent performance in all conditions
► J-KIT: The J-Kit system makes it easier to route the brake hose inside the frame, with a simplified connection to the calliper and a pre-fitted olive, for quick and easy installation
► SERVOWAVE ACTION: The SERVOWAVE lever allows quick pad contact with the rotor, then multiplies braking power for increased control with less lever movement
► REACH ADJUST: The brake lever with reach adjustment allows the distance between the grip and the lever to be set, adapting to all hand sizes and riding preferences for optimal braking and gear shifting
► I-SPEC EV: The I-SPEC EV mounting standard offers a clean cockpit, adaptable to all riders thanks to a generous adjustment range, improving comfort and focus with an ergonomic design and increased rigidity for optimal control
► ICE TECHNOLOGIES: Shimano ICE TECHNOLOGIES components reduce heat build-up, ensuring consistent braking and preventing fade during intense and prolonged descents╔

┘GENERAL
• Series: Deore
• Manufacturer Reference:
_Lever: BL-M6100 (x2)
_Calliper: BR-M6100 (x2)
• Weight:
_Lever: n/a
_Calliper: n/a
_Lever/Calliper/Hose Assembly: n/a
• Materials:
_Lever: Aluminium
_Calliper: Aluminium
_Pistons: Resin┌

┘SPECIFICATIONS
• Brake Lever/Gear Shifter Integration: I-SPEC EV
• Lever length: 2 Fingers
• I-SPEC EV adjustment angle: 10°
• Number of Pistons: 2
• Calliper Mounting: PostMount (PM)
• Pads: G05S-RX, J05A-RF, G04S-MX
• Recommended Brake Fluid: Shimano mineral oil
• Hoses: 1000mm (front) 1700mm (rear) - SM-BH90-SS - Straight Fitting
• Min./max. rotor diameter: 160mm to 220mm (combined with required adapters)
• Recommended rotor: SM-RT54, SM-RT56, SM-RT64, SM-RT66 (not included)
• J-Kit pre-bleed: Yes┌
;
