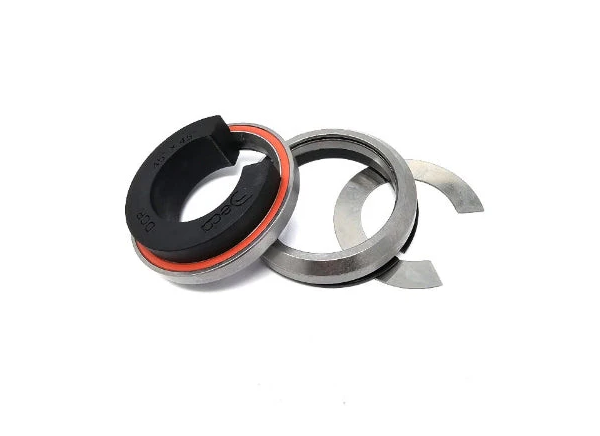

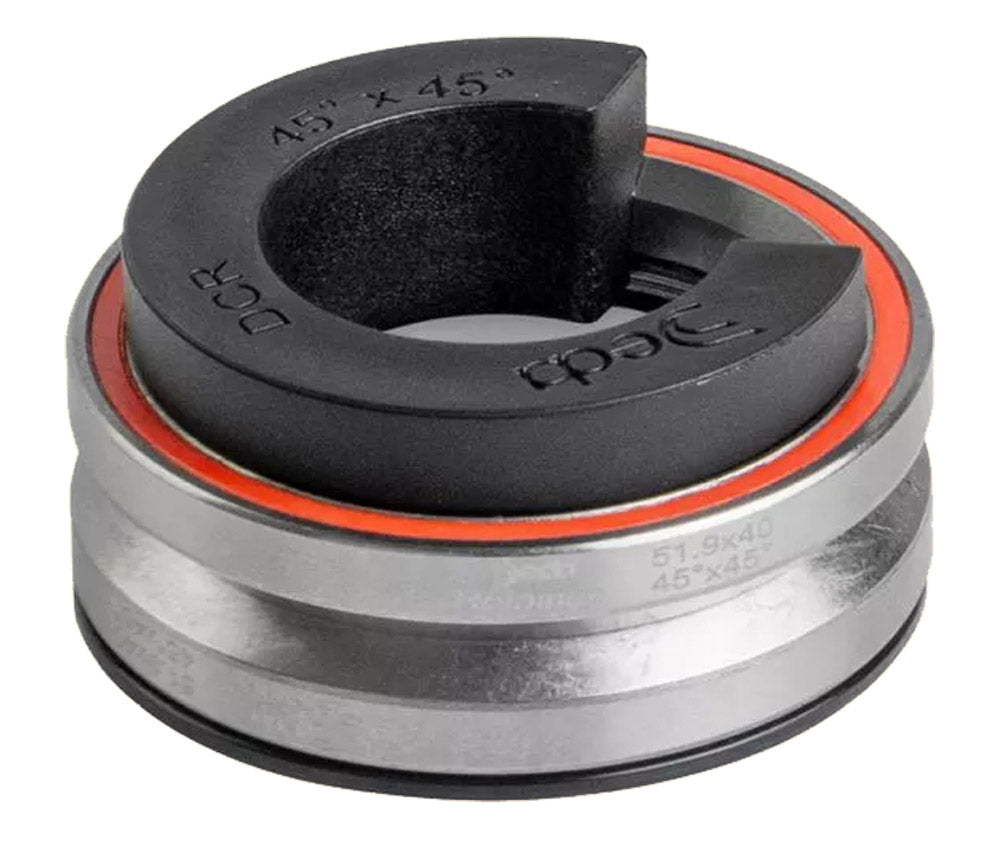

DEDA DCR 1.1/8" - 1.1/2" IS46/52 Headset

Manufacturer ref.: HDDCR
The DEDA headset is designed to work with the system DCR (Deda Internal Cable Routing) and is compatible with the Vinci stem. It allows... Read more
Regular price 1.359,00 CZK
Regular price Sale price 1.359,00 CZK
View full details

Description

The DEDA headset is designed to work with the system DCR (Deda Internal Cable Routing) and is compatible with the Vinci stem.

It allows full cable integration. The DCR system works with a standard tapered fork steerer (1-1/8" - 1-1/2"), but requires a 52 mm (1.5") upper headset bearing.

The special design of the compression ring leaves room for cables to fit in the space between the fork and the headset bearings.

Ref: 7967907053734

Highlights

Allows full cable integration.

Specifications

Headset Diameter : Tapered 1"1/8 - 1.5"

Type : Integrated

Technical information

Integrated headset 1.5" - 1.5" ;
Chromium steel angular contact bearings ;
Head tube: 56 mm ;
Contact angle: 45° x 45° ;
For 1.5" and 1 1/8" tapered fork steerer ;
Height: 9.6 mm.
