DT SWISS ARC 1600 SPLINE 50mm Tubeless Ready Rear Wheel (Centerlock)

The DT SWISS ARC 1600 SPLINE 62 DISC rear wheel is designed for optimum aerodynamics thanks to collaboration with SWISS SIDE, a specialist in... Read more
22.639,00 Kč
22.639,00 Kč
View full details

Description

The DT SWISS ARC 1600 SPLINE 62 DISC rear wheel is designed for optimum aerodynamics thanks to collaboration with SWISS SIDE, a specialist in the field.

Its AERO+ rim profile reduces drag and steering torque for perfect stability and control, even in crosswinds. This design maximizes the sail effect for more efficient propulsion.

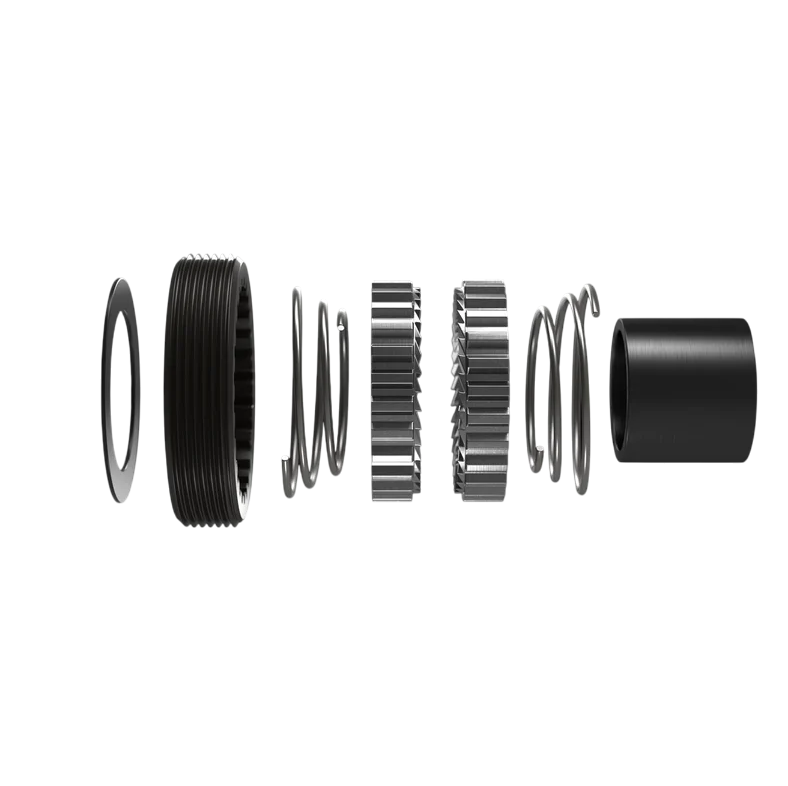

Equipped with the 350 Ratchet System SL 36-tooth hub, the wheel guarantees fast, efficient engagement, ensuring optimum power transmission. Reinforced spokes provide perfect rigidity while maintaining excellent fluidity, even on technical and hilly roads. The result is a smooth, dynamic ride, whatever the conditions.

Offering a perfect balance between performance and handling, these wheels are ideal for cyclists seeking speed and control in all conditions.

Please note: Photo non-contractual.

Manufacturer's manual + Rim/tire & pressure compatibility chart

SPLINE Models Manual

Tubeless Mounting Manual

Ref: 15694472511868

Informations techniques

┘GENERAL
Category: Road
Max. load 110 kg
ASTM classification: 1
Recommended E-Bikes: No

┘JANTE
Material: Carbon
Tire interface: Hooked/Crochet tubeless TC
Wheel diameter: 622mm / 29" / 700c
Rim height: 62mm
Internal width: 20mm
External width: 27mm

┘MOYEU
Axle system: 12mm Thru axle
Rear center distance: 142mm
Disc mounting: Center Lock
Freewheel body: Shimano HG
Freewheel: Ratchet System 36 SL
Hub type: 350

┘ NIPPLES AND NUTS
Left spokes: DT aero comp® t-head
Straight spokes: DT aero comp® t-head
Shelving type: Two-cross (1:1)
Nuts : DT ProLock hidden aluminum

┘ASSEMBLY & TECHNOLOGIES
► SPLINE: DT Swiss's SPLINE concept combines robust hubs, optimized straight spokes and Ratchet technology for efficient power transfer. It ensures reliability, responsiveness and ease of maintenance for versatile performance ;
► CRAFT KNOW-HOW: Handcrafted, guaranteed to benefit from all the DT Swiss know-how ;

┘INCLUSIVE
Rim tape : 23mm tubeless rim
Valve : Valve TL alu black / Valve protection sticker
;

Informations prix

Supplier suggested retail price in February 2025
