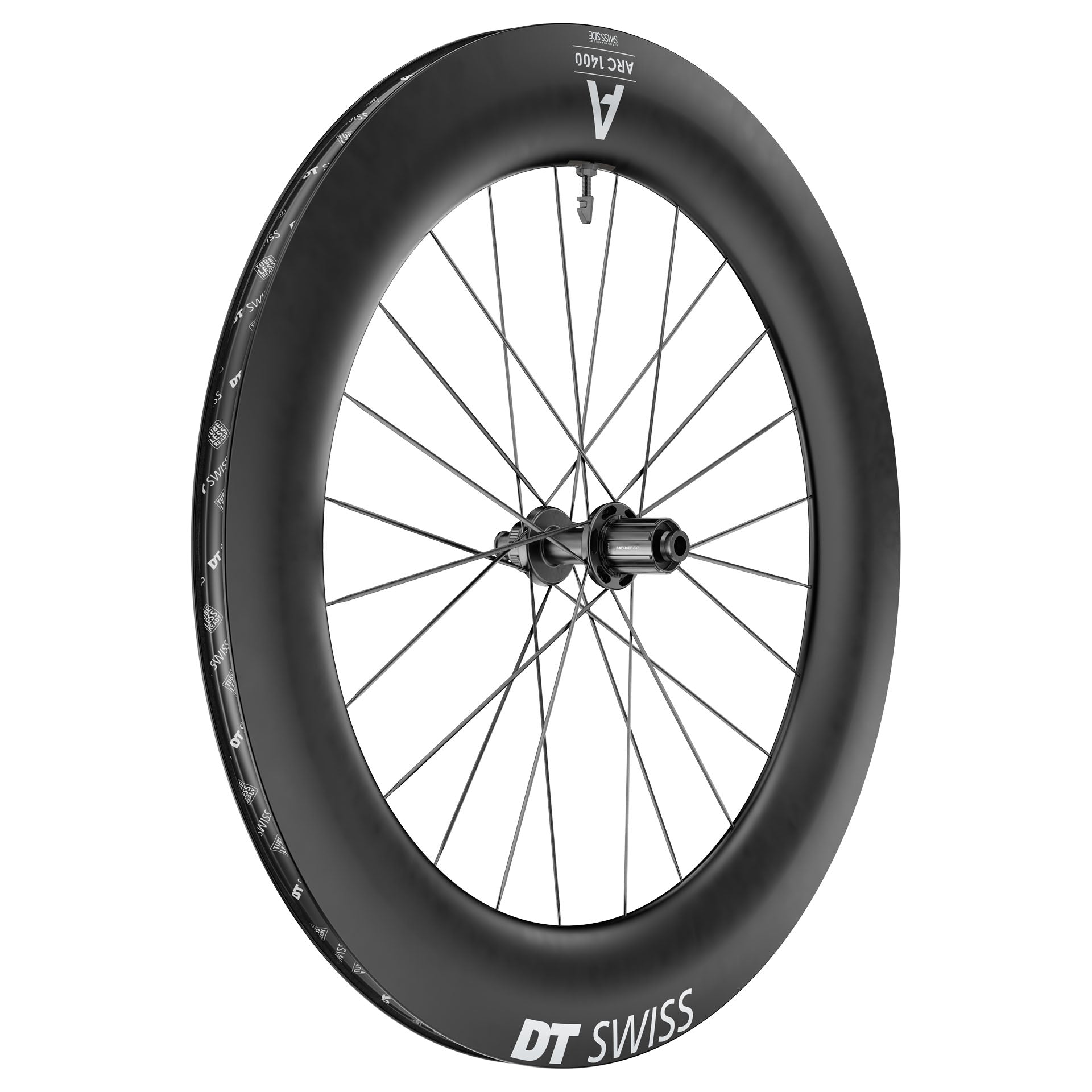

DT SWISS ARC 1400 DICUT 85 Tubeless Ready Rear Wheel (Center Lock)

Réf. fabricant : WARC140NIDICA27385
Designed for demanding cyclists in search of performance, theDT SWISS ARC 1400 DICUT 85 rear wheel is the third generation of the ARC range.... Read more
32.431,00 Kč
32.431,00 Kč
View full details

Description

Designed for demanding cyclists in search of performance, theDT SWISS ARC 1400 DICUT 85 rear wheel is the third generation of the ARC range. It incorporates the latest aerodynamic advances with an 85 mm rim profile optimized for wide tires, without compromising speed or stability.

Take the lead in cycling: when a fast set-up is needed to reach top speed in your next triathlon or time trial. These wheels, ideally suited to 28 and 25 mm tires, find their best ally in the AERO 111 tire to deliver the best aerodynamic performance.

The rim's new V-shape provides increased internal width, improving comfort and grip while maximizing aerodynamics. Combined with DT 240 DICUT hubs with Ratchet EXP system, these wheels ensure direct power transmission and rock-solid reliability. DT aerocomp II flat spokes further enhance rigidity and responsiveness.

Whether you want to take the lead in the peloton or push your limits on the climbs, the ARC 1400 DICUT 85 offers an ideal combination of low weight, maneuverability and aerodynamic performance. It excels in situations where every watt counts.

Embrace DT Swiss' cutting-edge technology and equip yourself with a decisive advantage in your next race.

Manufacturer's Manual + Rim/Tire & Pressure Compatibility Chart

Manual DICUT Models

Tubeless Mounting Manual

Ref: 15385887736188

Informations techniques

┘GENERAL
Category: Road
Rear weight: 947 g
Max. load 110 kg
ASTM classification: 1
Recommended E-Bikes: No
Part Number : WARC140NIDICA27385

┘JANTE
Material: Carbon
Tire interface: Hooked/Crochet tubeless TC
Wheel diameter: 622mm / 29" / 700c
Rim height: 85mm
Internal width: 22mm
External width: 32mm

┘MOYEU
Axle system: 12mm Thru axle
Rear center distance: 142mm
Disc mounting: Center Lock
Freewheel body: Shimano HG
Freewheel: Ratchet EXP 36
Hub type: 240

┘ NIPPLES AND NUTS
Rear spokes :
- Left: DT aero comp® II t-head
- Rights : DT aero comp® II t-head
Shelving type: Two-cross (1:1)
Nuts : DT Pro Lock hidden aluminum

┘ASSEMBLY & TECHNOLOGIES
► AERO RANGE: DT Swiss's Aero range maximizes aerodynamics with streamlined rims and innovative spokes, offering high performance and exceptional stability, ideal for reaching optimal speeds ;
► DICUT: DT Swiss's DICUT concept combines high-performance hubs, optimized spokes and advanced aerodynamics. Designed for speed and efficiency, it maximizes lateral stiffness and power transfer on road and track ;
► AERO+: DT Swiss's Aero+ technology optimizes aerodynamics and stability by reducing drag and improving handling. It perfectly balances air resistance, pedaling efficiency and crosswind control ;
► RATCHET EXP:DT Swiss's Ratchet EXP freewheel body technology optimizes hub engagement by integrating a single tapered spring, reducing weight and increasing durability. It ensures efficient power transfer and simplified maintenance. ;
► CRAFT KNOW-HOW: Handcrafted, guaranteed to benefit from all the DT Swiss know-how ;

┘INCLUSIVE
Rim tape : 25mm tubeless roll
Valve TL alu black 81-85 mm / Valve protection sticker
SRAM XDR freewheel body

┘CONVERSION REFERENCES
- Rear wheel
► Adapters for Shimano HG / QR: HWGXXX00S7446S ;
► XDR / QR Kit: HWYABL00S5382S ;
► Kit XDR / 12x142 : HWYABL00S5401S ;
► Adapters for XDR / QR: HWGXXX00S2760S ;
► Kit Microspline / 12x142 : HWYABL00S1960S ;
► Adapters for Microspline / QR: HWGXXX00S5623S ;
► Kit Campagnolo N3W / 12x142 : HWYABL00S2993S ;
► Campagnolo Kit / QR: HWYABL00S7073S ;
► Kit Campagnolo / 12x142 : HWYABL00S7074S ;
► Adapters for Campagnolo / QR: HWGXXX00S2766S ;
► Adapters for DT Swiss Thru Bolt System: HWGXXX0006560S ;
► Adapters for Shimano HG / 12x135: HWGXXX0007569S ;
;

Informations prix

Recommended retail price June 2025
