DT SWISS

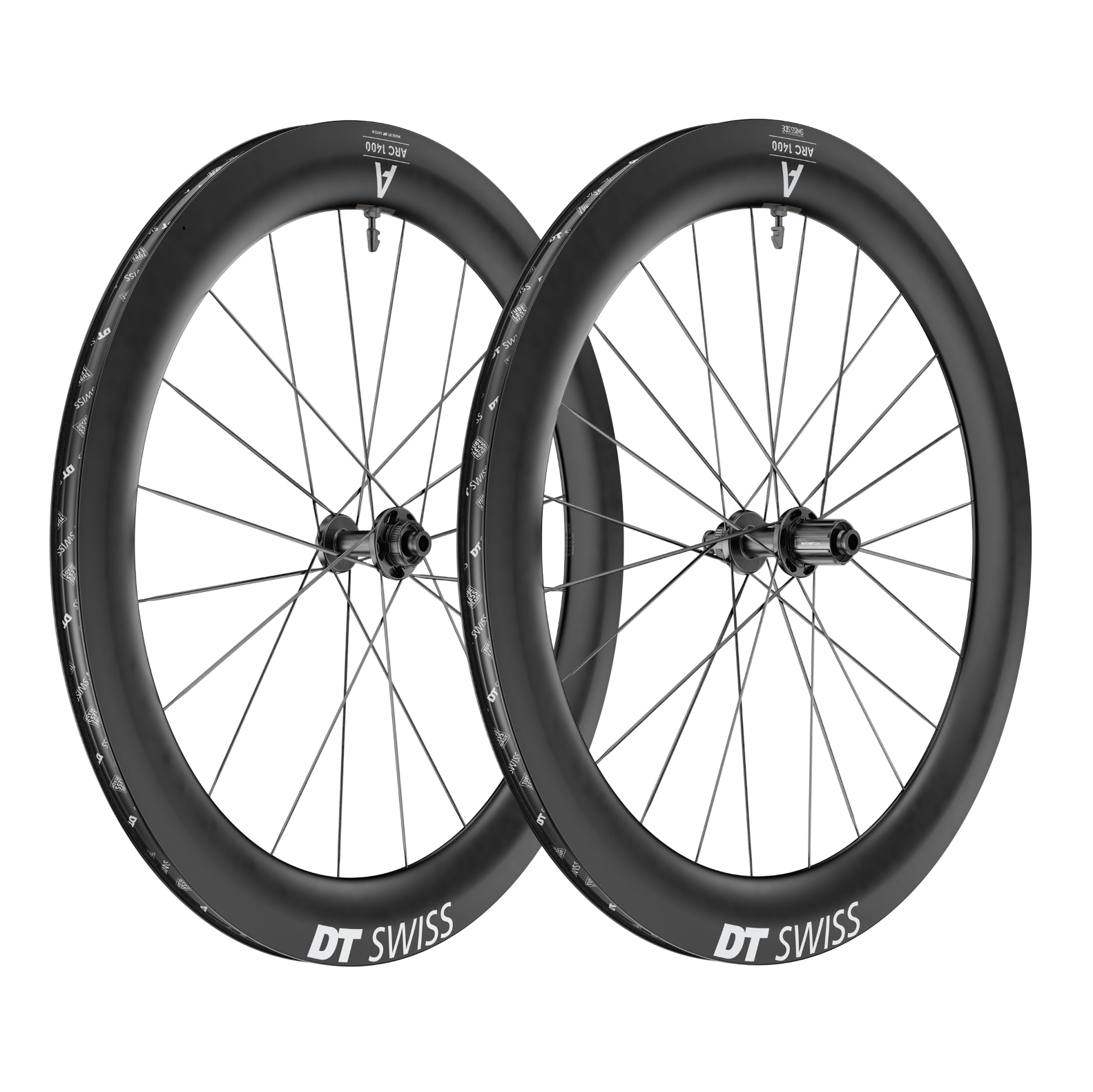

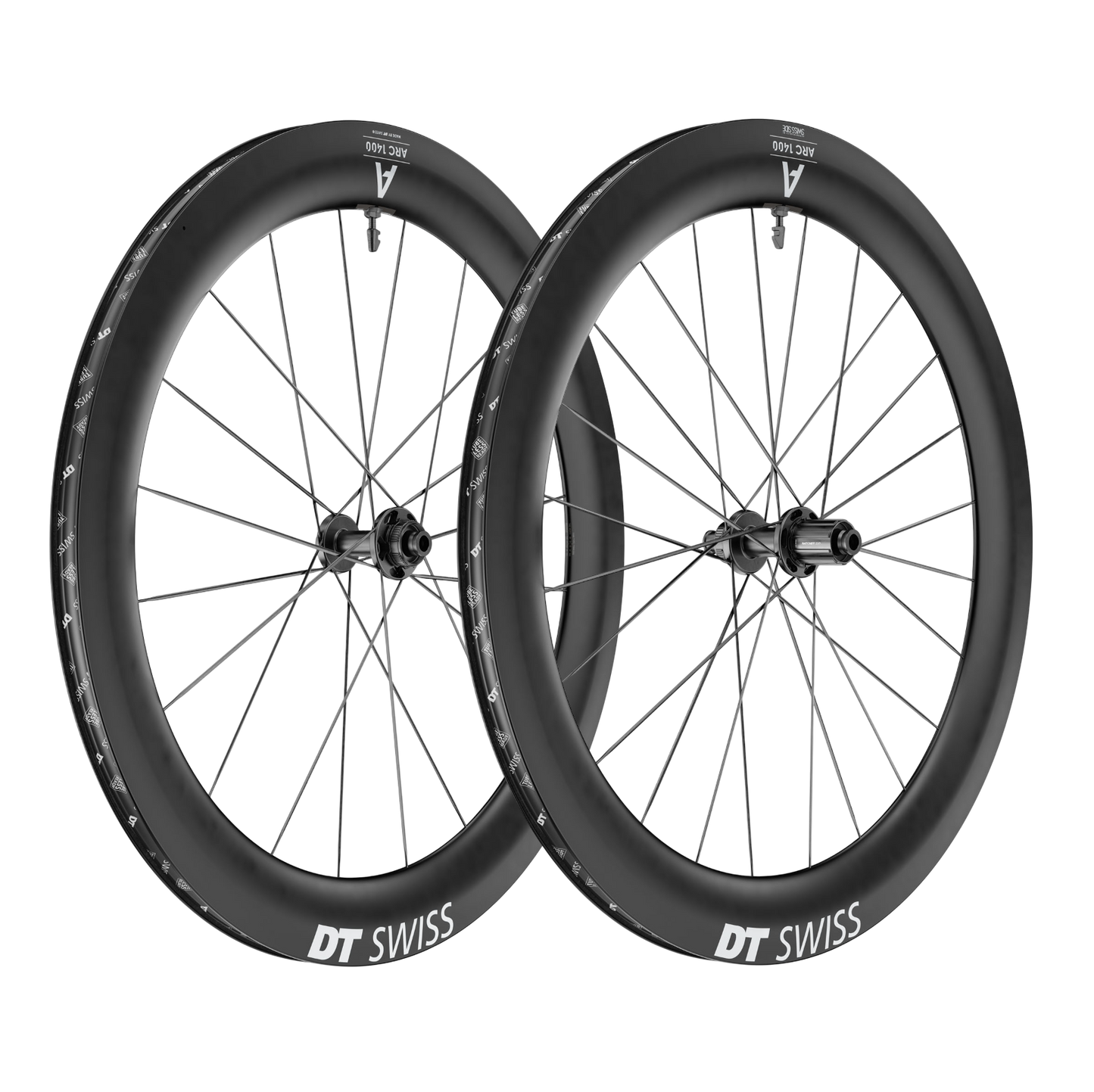

Pair of DT SWISS ARC 1400 DICUT 65 Tubeless Ready Wheels (Center Lock)

Designed for demanding cyclists looking for performance, the wheelset DT SWISS ARC 1400 DICUT 65 WHEELSET is the third generation of the ARC range.... Read more
Regular price 56.507,00 Kč
Regular price Sale price 56.507,00 Kč
View full details

Description

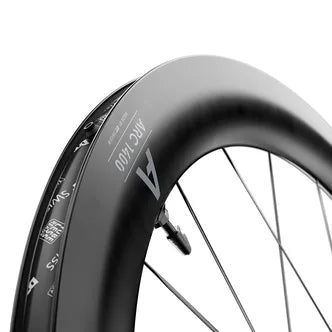

Designed for demanding cyclists looking for performance, the wheelset DT SWISS ARC 1400 DICUT 65 WHEELSET is the third generation of the ARC range. They incorporate the latest aerodynamic advances with a 65 mm rim profile optimized for wide clinchers, without compromising speed or stability.

Take the lead on your most coveted KOM: the low aerodynamic drag of these wheels is ideal for all-out racing. They cut through the air at full speed in the final meters of the sprint to victory. These wheels will make sparks fly on fast, flat roads.

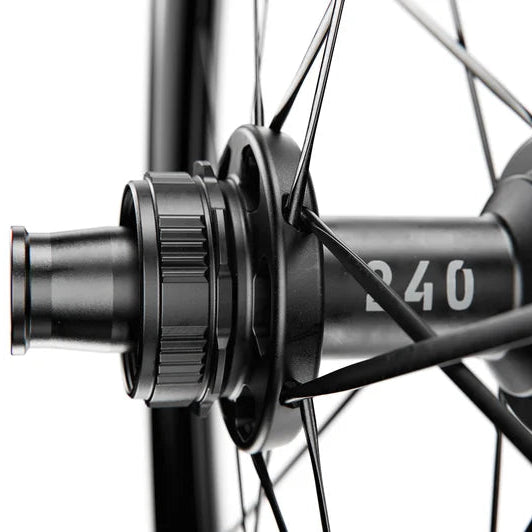

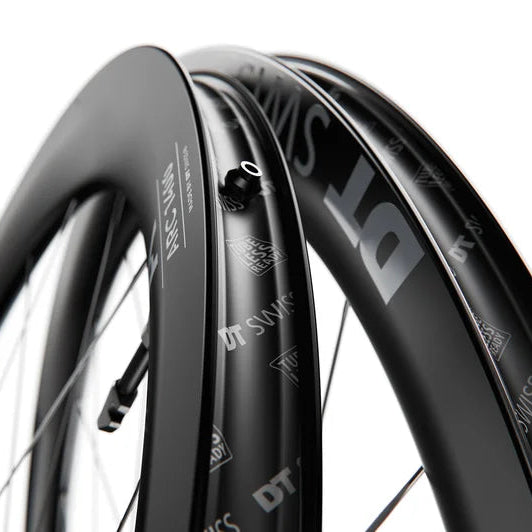

The new V-shaped rim provides increased internal width, improving comfort and grip, while maximizing aerodynamics. Combined with DT 240 DICUT hubs hubs with the Ratchet EXPsystem, these wheels provide direct power transmission and rock-solid reliability. Flat spokes DT aerocomp II flat spokes further enhance rigidity and responsiveness.

Whether you want to take the lead in the peloton or push your limits on the climbs, the ARC 1400 DICUT 65 offers an ideal combination of light weight, maneuverability and aerodynamic performance. It excels in situations where every watt counts.

Embrace DT Swiss' cutting-edge technology and equip yourself with a decisive advantage in your next race.

Manufacturer's Manual + Rim/Tyre Compatibility & Pressure Chart

Manual DICUT Models

Tubeless Mounting Manual

Ref: 15386104168828

Informations techniques

┘GENERAL
Category : Road
Weight Pair: 1729 g
Front weight: 758 g
Rear weight: 971 g
Max. load 110 kg
ASTM classification: 1
Recommended E-Bikes: No
Part Number Front / Rear : WARC140AIDXCA27389 / WARC140NIDICA27390

┘JANTE
Material : Carbon
Tire interface: Hooked/Crochet tubeless TC
Wheel diameter: 622mm / 29" / 700c

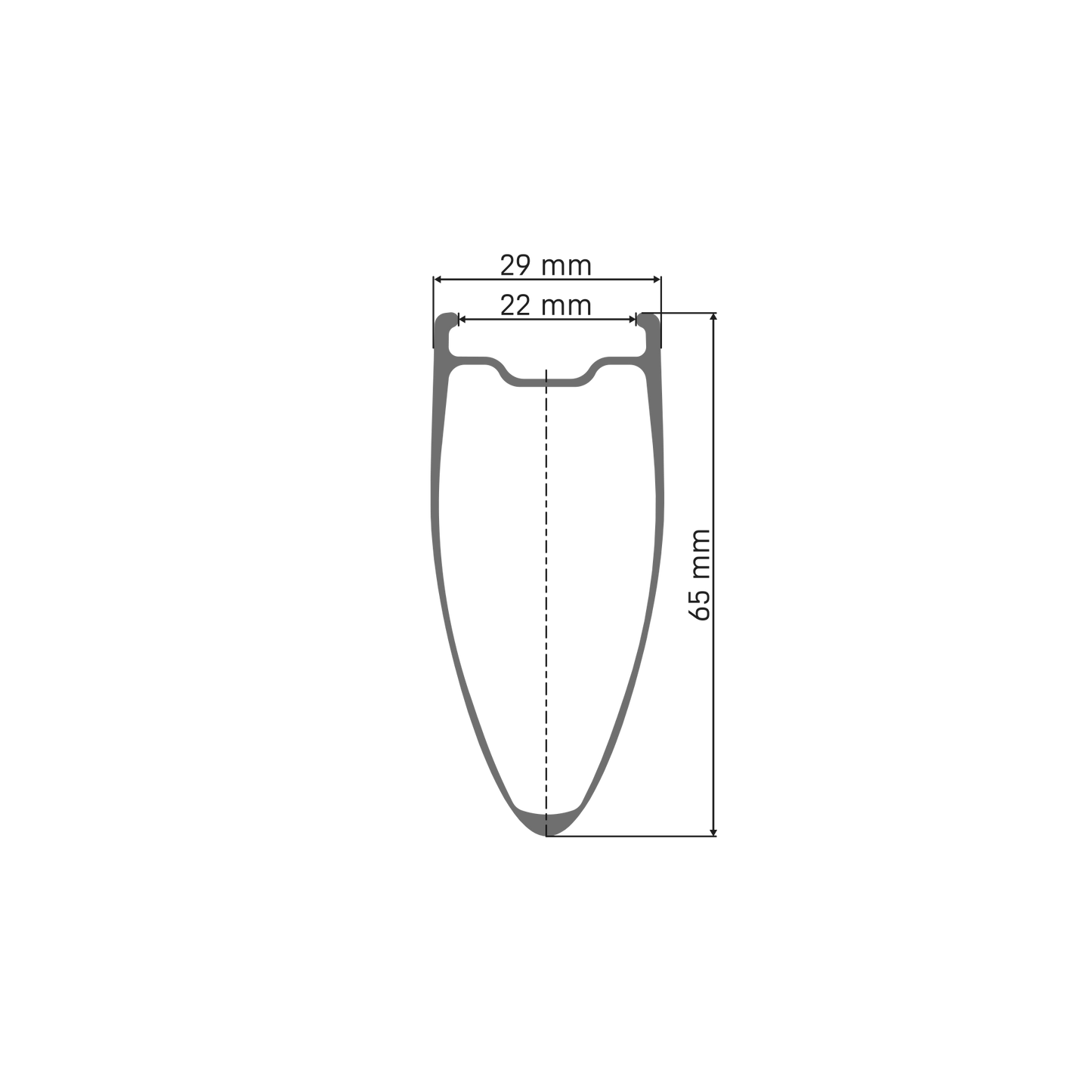

Rim height: 65mm
Internal width: 22mm
External width: 29mm

┘MOYEUX
Axle system: 12mm Thru axle
Front axle center distance: 100mm
Rear axle center distance: 142mm
Disc mounting: Center Lock
Freewheel body: Shimano HG
Freewheel: Ratchet EXP 36

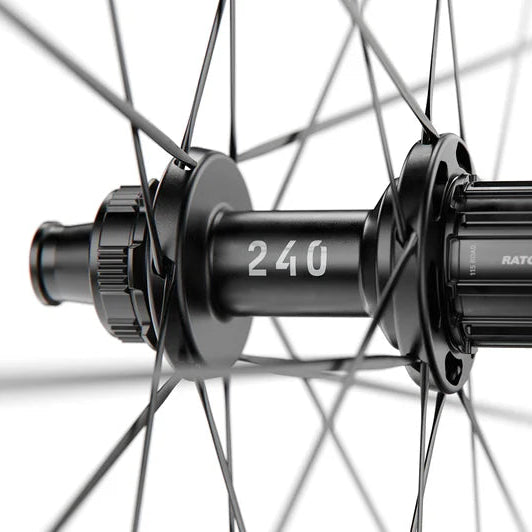

Hub type: 240

┘ NIPPLES AND NUTS
Front spokes :
- Left: DT aero comp® II t-head
- Right: DT aero comp® II t-head
Rear spokes :
- Left: DT aero comp® II t-head
- Right: DT aero comp® II t-head
Racking type: Two-cross (1:1)
Nuts : DT Pro Lock hidden aluminum

┘ASSEMBLY & TECHNOLOGIES
► AERO RANGE: DT Swiss's Aero range maximizes aerodynamics with streamlined rims and innovative spokes, offering high performance and exceptional stability, ideal for reaching optimal speeds ;
► DICUT: DT Swiss's DICUT concept combines high-performance hubs, optimized spokes and advanced aerodynamics. Designed for speed and efficiency, it maximizes lateral stiffness and power transfer on Road and Track ;
► AERO+: DT Swiss's Aero+ technology optimizes aerodynamics and stability by reducing drag and improving handling. It perfectly balances air resistance, pedaling efficiency and crosswind control ;
► RATCHET EXP:DT Swiss's Ratchet EXP freewheel body technology optimizes hub engagement by integrating a single tapered spring, reducing weight and increasing durability. It ensures efficient power transfer and simplified maintenance. ;
► CRAFT KNOW-HOW: Handcrafted, guaranteed to benefit from all DT Swiss know-how;

┘INCLUSIVE
Rim base: 25mm tubeless roll
Black TL alu valve 49-65 mm / Valve protection sticker
SRAM XDR freewheel body

┘CONVERSION REFERENCES
- Front wheel
► Adapters for QR: HWGXXX0000051S ;
- Rear wheel
► Adapters for Shimano HG / QR: HWGXXX00S7446S ;
► XDR kit / QR: HWYABL00S5382S ;
► Kit XDR / 12x142 : HWYABL00S5401S ;
► Adapters for XDR / QR: HWGXXX00S2760S ;
► Microspline / 12x142 kit: HWYABL00S1960S ;
► Adapters for Microspline / QR: HWGXXX00S5623S ;
► Campagnolo N3W kit / 12x142: HWYABL00S2993S ;
► Campagnolo Kit / QR: HWYABL00S7073S ;
► Kit Campagnolo / 12x142 : HWYABL00S7074S ;
► Adapters for Campagnolo / QR: HWGXXX00S2766S ;
► Adapters for DT Swiss Thru Bolt System: HWGXXX0006560S ;
► Adapters for Shimano HG / 12x135: HWGXXX0007569S ;
