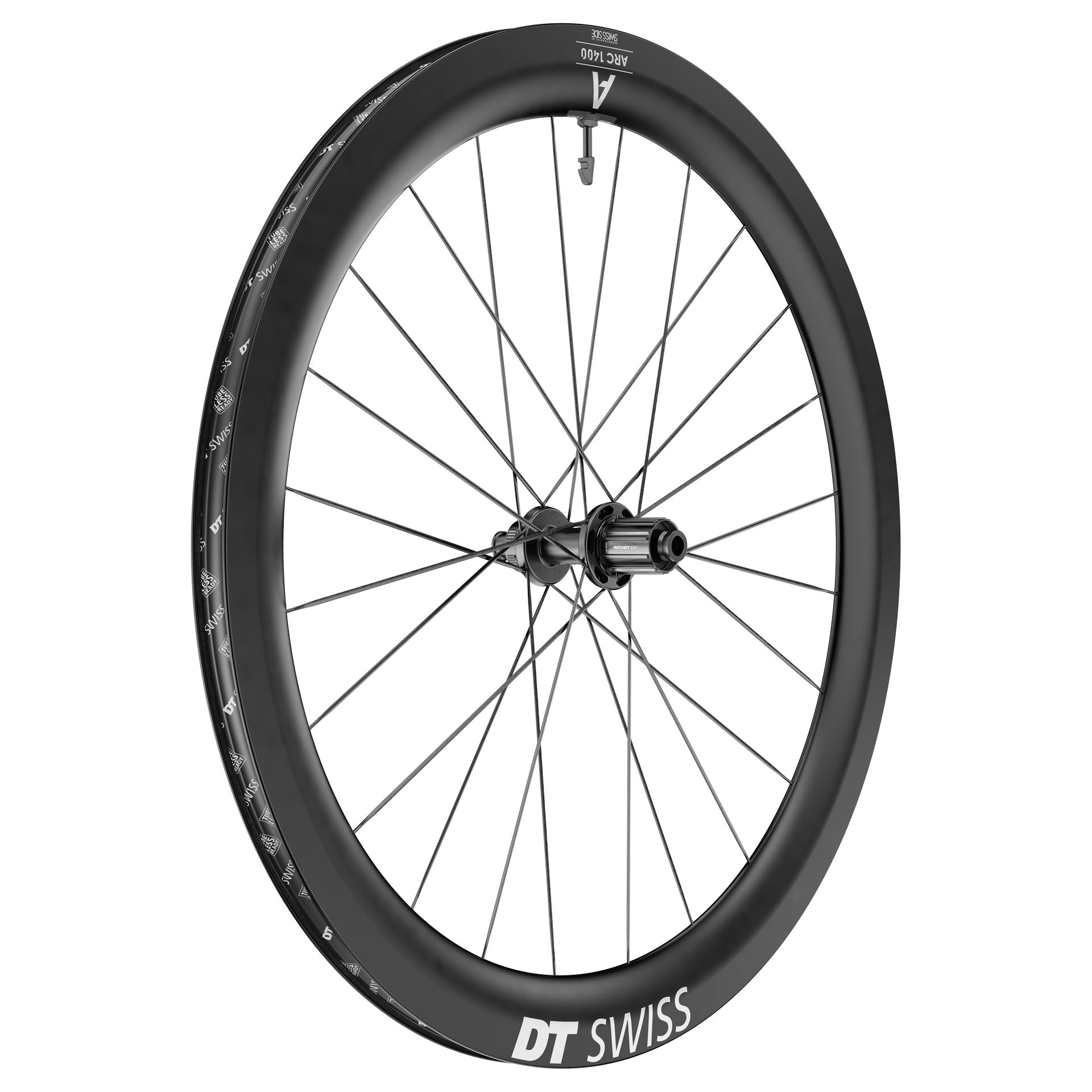

DT SWISS ARC 1400 DICUT 55 Tubeless Ready Rear Wheel (Center Lock)

Réf. fabricant : WARC140NIDICA27498
Designed for demanding cyclists looking for performance, the rear wheel DT SWISS ARC 1400 DICUT 55 is the third generation of the ARC range.... Read more
32.775,00 Kč
32.775,00 Kč
View full details

Description

Designed for demanding cyclists looking for performance, the rear wheel DT SWISS ARC 1400 DICUT 55 is the third generation of the ARC range. It incorporates the latest aerodynamic advances with a 55 mm rim profile optimized for wide clinchers, without compromising speed or stability.

Take the lead on climbs: these wheels offer good aerodynamic performance and great maneuverability, while their lower weight will be a great ally on climbs.

The new V-shaped rim provides increased internal width, improving comfort and grip, while maximizing aerodynamics. Combined with DT 240 DICUT hubs hubs with the Ratchet EXPsystem, these wheels provide direct power transmission and rock-solid reliability. Flat spokes DT aerocomp II flat spokes further enhance rigidity and responsiveness.

Whether you want to take the lead in the peloton or push your limits on the climbs, the ARC 1400 DICUT 55 offers an ideal combination of low weight, maneuverability and aerodynamic performance. It excels in situations where every watt counts.

Embrace DT Swiss' cutting-edge technology and equip yourself with a decisive advantage for your next race or long outing.

Manufacturer's Manual + Rim/Tyre Compatibility & Pressure Chart

Manual DICUT Models

Tubeless Mounting Manual

Ref: 15385886753148

Informations techniques

┘GENERAL
Category : Road
Rear weight: 836 g
Max. load 110 kg
ASTM classification: 1
Recommended E-Bikes: No
Part Number : WARC140NIDICA27395

┘JANTE
Material : Carbon
Tire interface: Hooked/Crochet tubeless TC
Wheel diameter: 622mm / 29" / 700c
Rim height: 55mm
Internal width: 22mm
External width: 28mm

┘MOYEU
Axle system: 12mm Thru axle
Rear axle center distance: 142mm
Disc mounting: Center Lock
Freewheel body: Shimano HG
Freewheel: Ratchet EXP 36
Hub type: 240

┘ NIPPLES AND NUTS
Rear spokes :
- Left: DT aero comp® II t-head
- Right: DT aero comp® II t-head
Racking type: Two-cross (1:1)
Nuts : DT Pro Lock hidden aluminum

┘ASSEMBLY & TECHNOLOGIES
► AERO RANGE: DT Swiss's Aero range maximizes aerodynamics with streamlined rims and innovative spokes, offering high performance and exceptional stability, ideal for reaching optimal speeds ;
► DICUT: DT Swiss's DICUT concept combines high-performance hubs, optimized spokes and advanced aerodynamics. Designed for speed and efficiency, it maximizes lateral stiffness and power transfer on Road and Track ;
► AERO+: DT Swiss's Aero+ technology optimizes aerodynamics and stability by reducing drag and improving handling. It perfectly balances air resistance, pedaling efficiency and crosswind control ;
► RATCHET EXP:DT Swiss's Ratchet EXP freewheel body technology optimizes hub engagement by integrating a single tapered spring, reducing weight and increasing durability. It ensures efficient power transfer and simplified maintenance. ;
► CRAFT KNOW-HOW: Handcrafted, guaranteed to benefit from all DT Swiss know-how;

┘INCLUSIVE
Rim base: 25mm tubeless roll
Black TL alu valve 49-65 mm / Valve protection sticker
SRAM XDR freewheel body

┘CONVERSION REFERENCES
- Rear wheel
► Adapters for Shimano HG / QR: HWGXXX00S7446S ;
► XDR kit / QR: HWYABL00S5382S ;
► Kit XDR / 12x142 : HWYABL00S5401S ;
► Adapters for XDR / QR: HWGXXX00S2760S ;
► Microspline kit / 12x142: HWYABL00S1960S ;
► Adapters for Microspline / QR: HWGXXX00S5623S ;
► Campagnolo N3W kit / 12x142: HWYABL00S2993S ;
► Campagnolo Kit / QR: HWYABL00S7073S ;
► Kit Campagnolo / 12x142 : HWYABL00S7074S ;
► Adapters for Campagnolo / QR: HWGXXX00S2766S ;
► Adapters for DT Swiss Thru Bolt System: HWGXXX0006560S ;
► Adapters for Shimano HG / 12x135: HWGXXX0007569S ;
;
