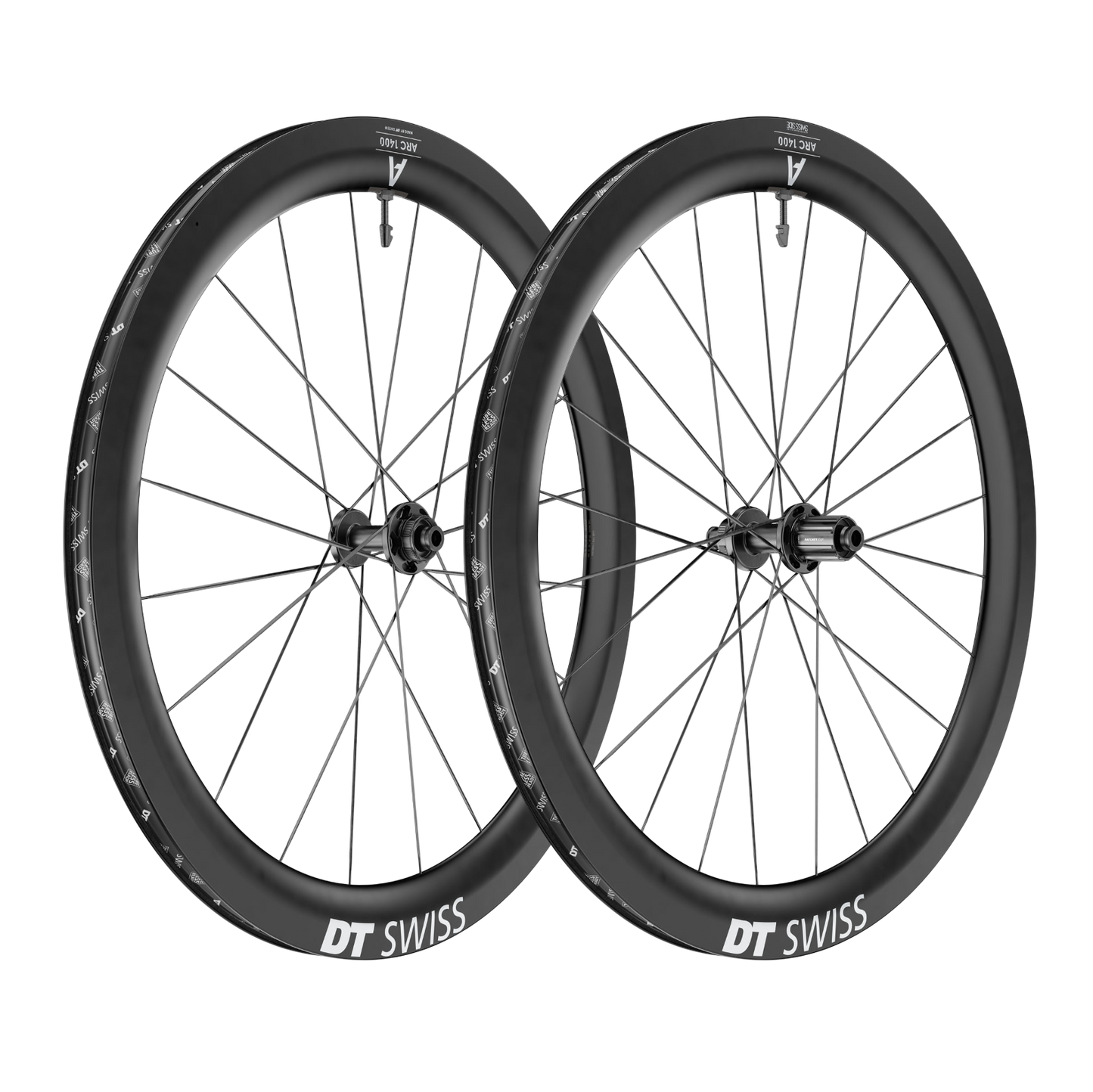

DT SWISS ARC 1400 DICUT 55 Tubeless Ready Wheelset (Center Lock)

Designed for demanding cyclists in pursuit of performance, the wheelset DT SWISS ARC 1400 DICUT 55 comes from the third generation of the ARC... Read more
49.219,00 CZK
54.397,00 CZK 49.219,00 CZK
-10%
View full details

Description

Designed for demanding cyclists in pursuit of performance, the wheelset DT SWISS ARC 1400 DICUT 55 comes from the third generation of the ARC range. It incorporates the latest aerodynamic advances with a 55 mm rim profile optimised for wide tyres, without compromising speed or stability.

Take the lead on climbs: these wheels offer good aerodynamic performance and excellent manoeuvrability, while their lower weight will be a great asset on the ascents.

The new V-shaped rim profile allows for an increased internal width, improving comfort and grip while maximising aerodynamics. Combined with the DT 240 DICUT hubs featuring the Ratchet EXP system, these wheels deliver direct power transmission and unrivalled reliability. The DT aerocomp II bladed spokes further enhance the stiffness and responsiveness of the whole assembly.

Whether you want to lead the peloton or push your limits on the climbs, the ARC 1400 DICUT 55 offers an ideal combination of low weight, manoeuvrability and aerodynamic performance. It excels in situations where every watt counts.

Embrace DT Swiss's cutting-edge technology and equip yourself with a decisive advantage on your next races or long rides.

Manufacturer Manual + Rim/Tyre Compatibility Chart & Pressures

DICUT Models Manual

Tubeless Fitting Manual

Ref: 15386105348476

Informations techniques

┘GENERAL
Category: Road
Pair Weight: 1559 g
Front Weight: 723 g
Rear Weight: 836 g
Max Load: 110 kg
ASTM Classification: 1
E-Bikes Recommended: No
Manufacturer Reference Front / Rear: WARC140AIDXCA27394 / WARC140NIDICA27395

┘RIM
Material: Carbon
Tyre Interface: Hooked/Hook tubeless TC
Wheel Diameter: 622mm / 29" / 700c
Rim Height: 55mm
Internal Width: 22mm
External Width: 28mm

┘HUBS
Axle System: 12mm Thru axle
Front Spacing: 100mm
Rear Spacing: 142mm
Disc Mount: Center Lock
Freehub Body: Shimano HG
Freehub: Ratchet EXP 36
Hub Type: 240

┘SPOKES AND NIPPLES
Front Spokes:
• Left: DT aero comp® II t-head
• Right: DT aero comp® II t-head
Rear Spokes:
• Left: DT aero comp® II t-head
• Right: DT aero comp® II t-head
Lacing Pattern: Two-cross (1:1)
Nipples: DT Pro Lock hidden aluminum

┘ASSEMBLY & TECHNOLOGIES
► AERO RANGE: The DT Swiss Aero range maximises aerodynamics with profiled rims and innovative spokes, delivering high performance and exceptional stability, ideal for achieving optimal speeds;
► DICUT: DT Swiss's DICUT concept combines high-performance hubs, optimised spokes and advanced aerodynamics. Designed for speed and efficiency, it maximises lateral stiffness and power transfer on road and track;
► AERO+: DT Swiss's Aero+ technology optimises aerodynamics and stability by reducing drag and improving handling. It perfectly balances air resistance, pedalling efficiency and crosswind control;
► RATCHET EXP: DT Swiss's Ratchet EXP freehub technology optimises hub engagement by integrating a single conical spring, reducing weight and increasing durability. It ensures efficient power transfer and simplified maintenance;
► ARTISAN CRAFTSMANSHIP: Hand-built, guaranteed to benefit from all of DT Swiss's expertise;

┘INCLUDED
Rim tape: 25mm tubeless tape
Black aluminium TL valve 49-65 mm / Valve protection sticker
SRAM XDR freehub body

┘CONVERSION REFERENCES
• Front Wheel
► Adapters for QR: HWGXXX0000051S;
• Rear Wheel
► Adapters for Shimano HG / QR: HWGXXX00S7446S;
► XDR / QR Kit: HWYABL00S5382S;
► XDR / 12x142 Kit: HWYABL00S5401S;
► Adapters for XDR / QR: HWGXXX00S2760S;
► Microspline / 12x142 Kit: HWYABL00S1960S;
► Adapters for Microspline / QR: HWGXXX00S5623S;
► Campagnolo N3W / 12x142 Kit: HWYABL00S2993S;
► Campagnolo / QR Kit: HWYABL00S7073S;
► Campagnolo / 12x142 Kit: HWYABL00S7074S;
► Adapters for Campagnolo / QR: HWGXXX00S2766S;
► Adapters for DT Swiss Thru Bolt System: HWGXXX0006560S;
► Adapters for Shimano HG / 12x135: HWGXXX0007569S;
;
