CANE CREEK

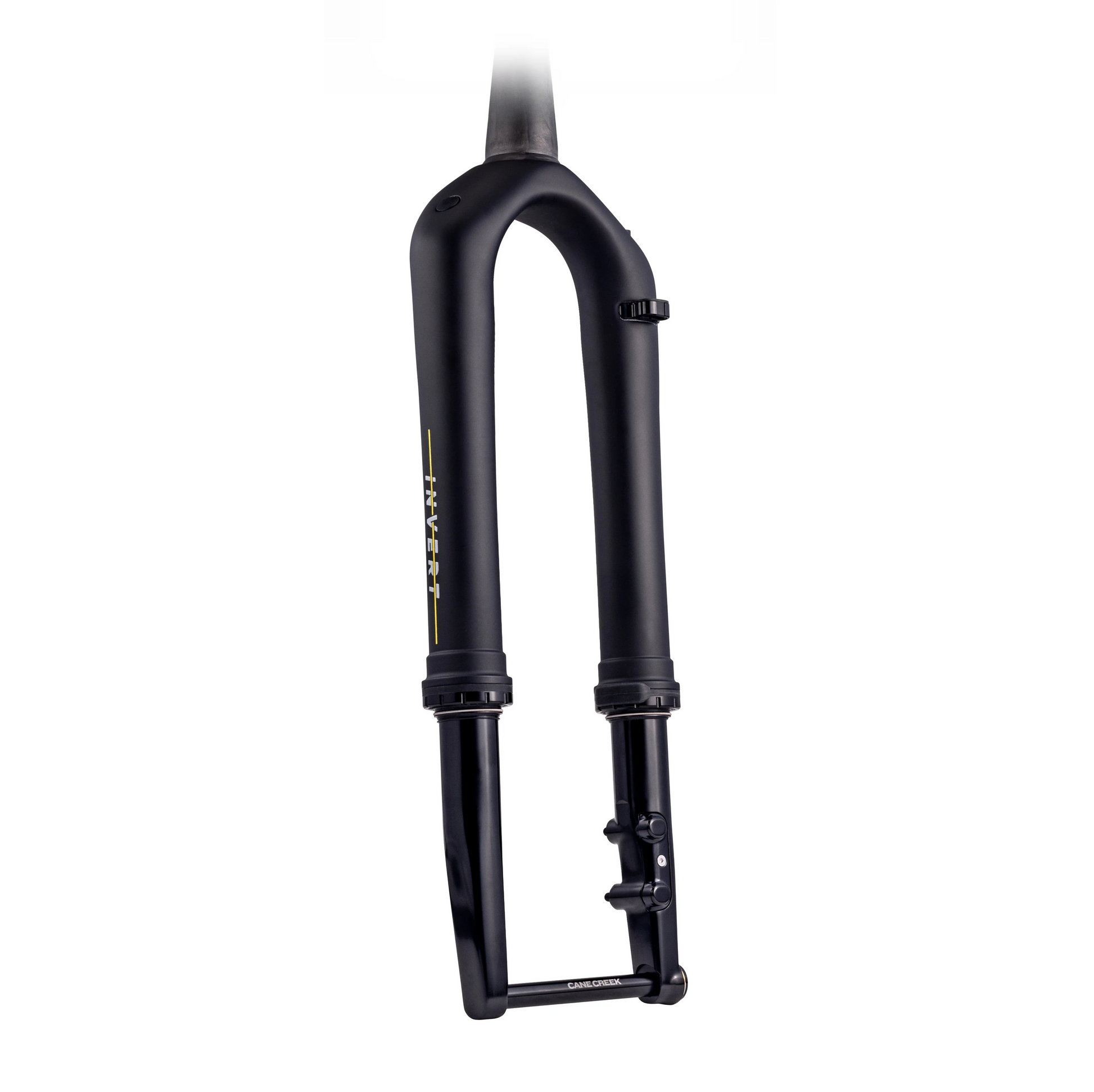

CANE CREEK INVERT CS 700c fork 45mm offset

Réf. fabricant : BBG0005
The CANE CREEK INVERT CS fork fork is the world's first inverted suspension fork designed specifically for gravel. With its 40 mm travelit transforms... Read more
Regular price 31.100,00 Kč
Regular price Sale price 31.100,00 Kč
View full details

Description

The CANE CREEK INVERT CS fork fork is the world's first inverted suspension fork designed specifically for gravel. With its 40 mm travelit transforms outings on rough terrain into smoother, more comfortable and more controlled experiences. Thanks to its inverted design, it offers exceptionally smooth operation, low weight and perfect visual integration with the clean lines of Road handlebar bikes.

Riding beyond the bitumen often imposes significant physical constraints. L'INVERT CS goes straight to the source of the problem, effectively absorbing shocks and vibrations, whether on unstable roads, gravel bends or steep descents. The result: more traction, more confidence, and reduced fatigue, both up and downhill.

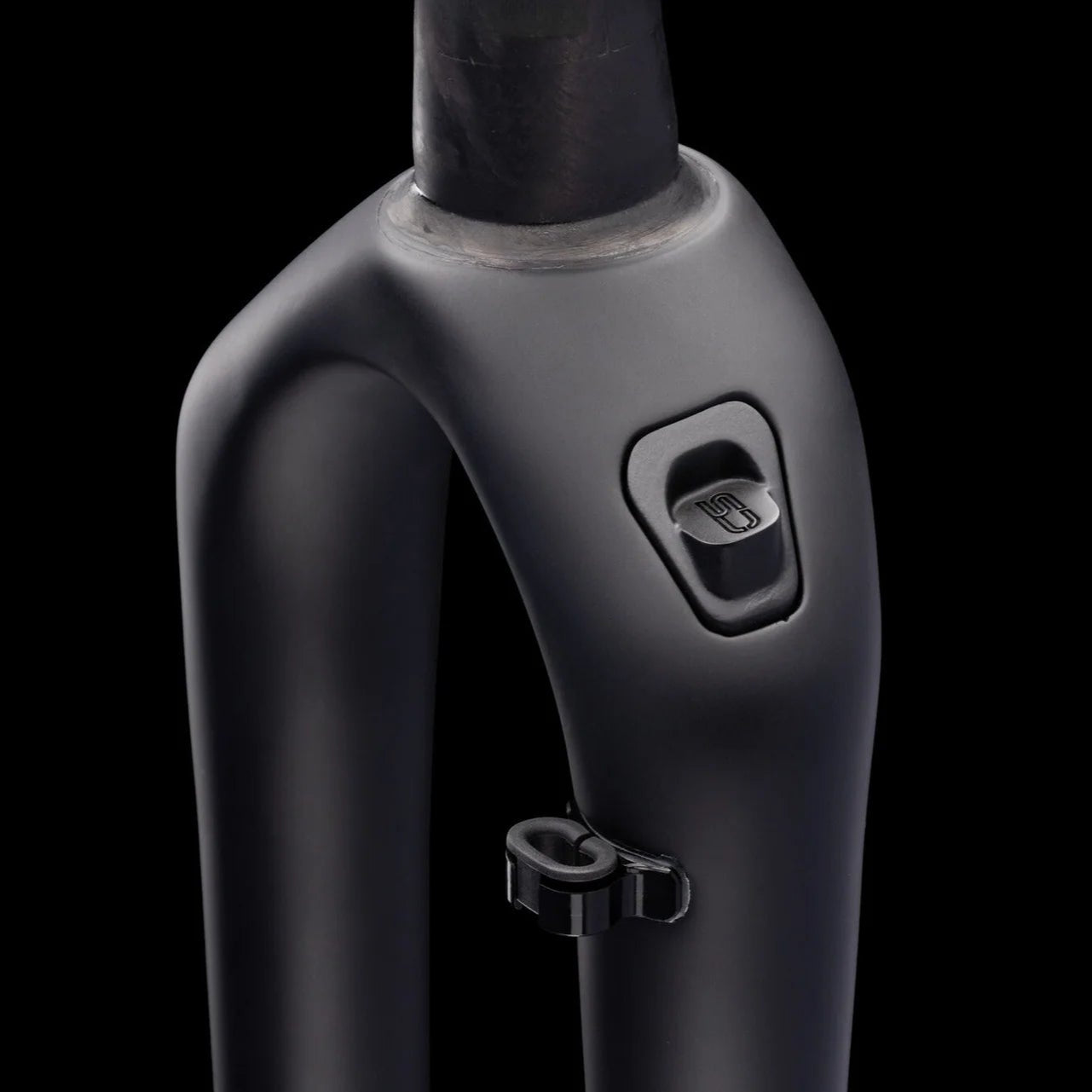

Its top-of-the-range construction carbon and aluminumenables a weight of just 1113 gwhile guaranteeing rigidity and reliability. The Climb Switcheasily operated even when wearing gloves, allows you to activate a firmer mode for pedaling in dances or on smooth terrain. No complex adjustments are required: simply adjust the air pressure with a pump and ride.

Sound progressive air springspecially adjusted for gravel, offers a perfect balance of comfort and support, fully customizable to the rider's weight. The inverted architecture also ensures a unique aesthetic, in harmony with modern bikes.

Handcrafted in Fletcher, North Carolinathe CANE CREEK INVERT CS fork embodies a new generation of gravel suspension: intuitive, lightweight, high-performance and resolutely focused on the pleasure of riding, whatever the terrain.

Manual and technical information.

Ref: 15086669693308

Informations techniques

Material: carbon and aluminum ;
Pneumatic preload adjustment ;
Axle travel: 40mm;

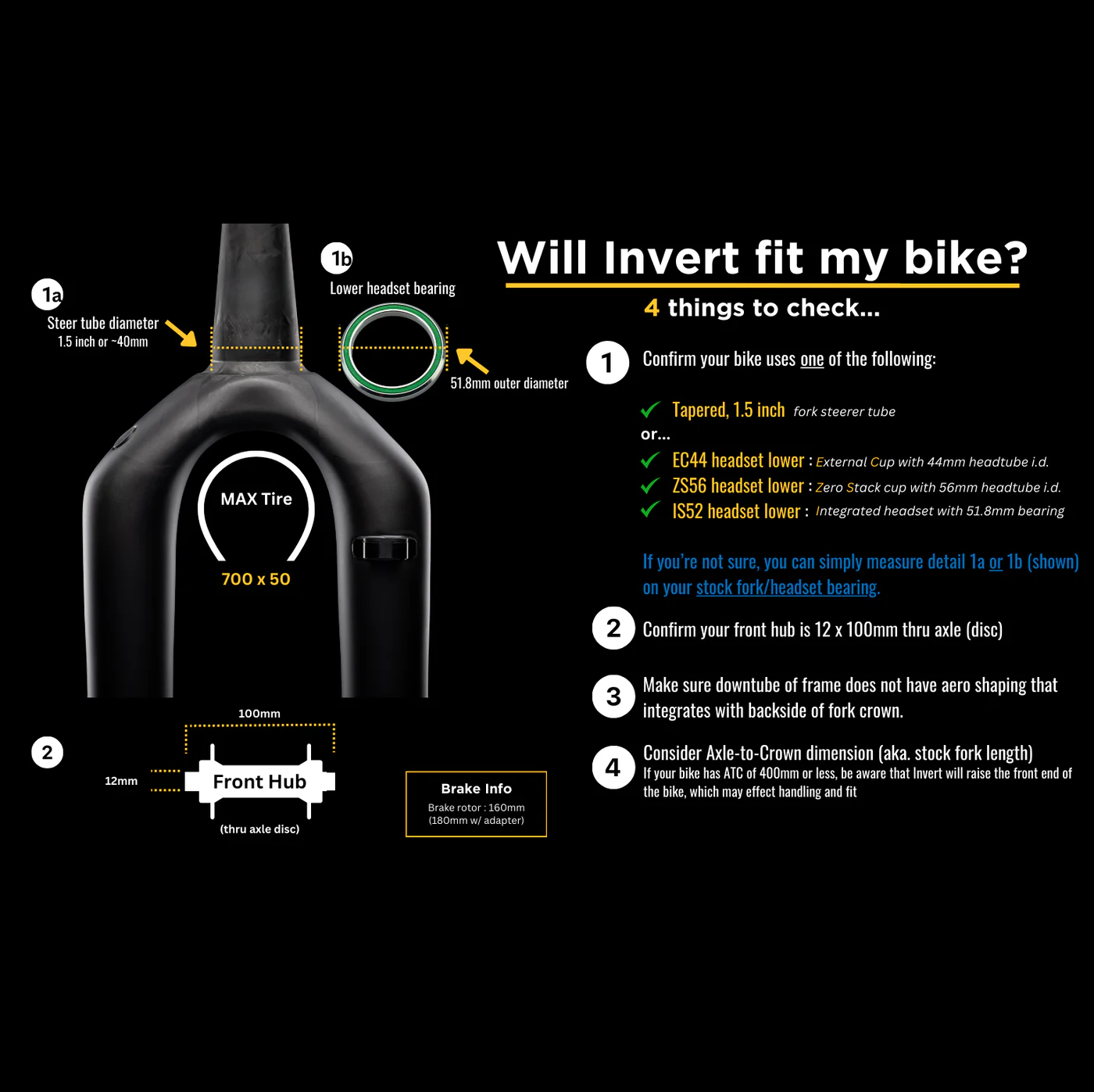

Fork T-axle height: 435mm ;
Offset: 45mm;
Max. tire width: 700x50c ;
Height / Carbon pivot diameter: 300mm / tapered
1.125" x 1.5" ;

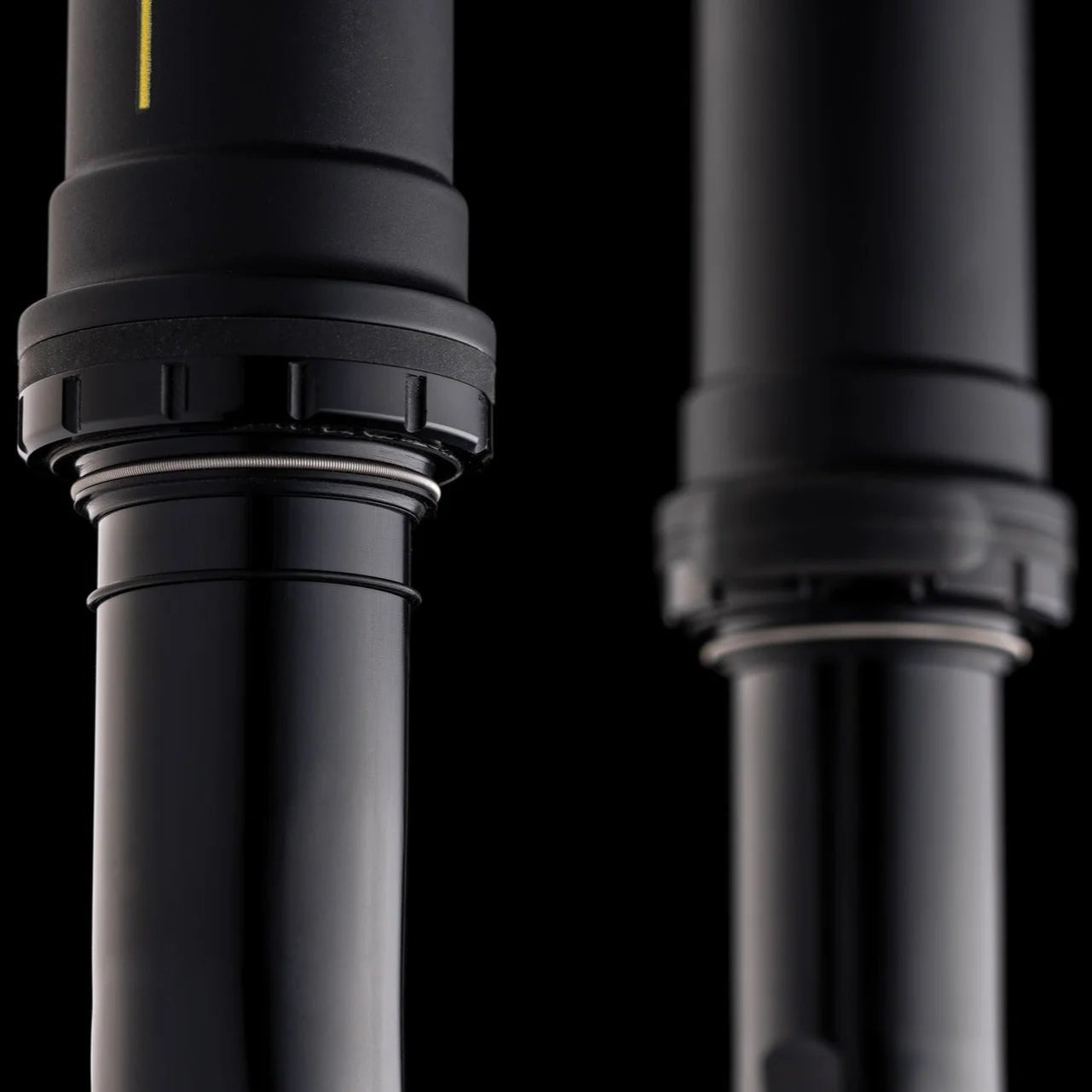

Plunger diameter: 30mm ;
One-piece, forged and machined plungers;
Fork cone: Integrated, 36-degree angle;
Max pressure: 250psi / 17.2 bar ;
Max Rider weight: 250lbs / 113kg

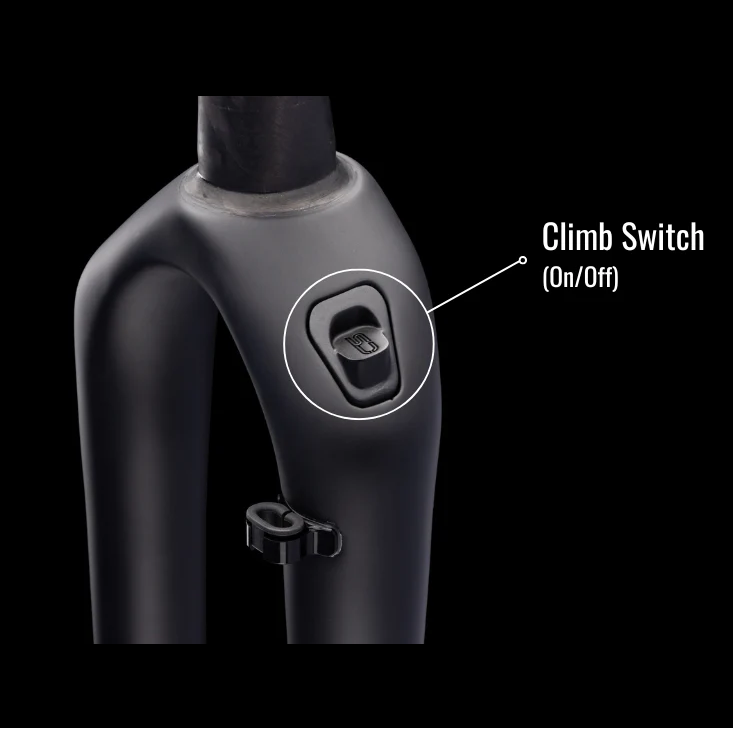

Blocage Climb Switch-On/Off ;
Axle 12x100mm ;
For Flat Mount brakes ;
Min/max disc: 160mm/180mm ;
Includes: 52mm ZN40 low bearing and Ancora expander;
Weight (manufacturer): 1113g.

Informations prix

Supplier suggested retail price in January 2025
