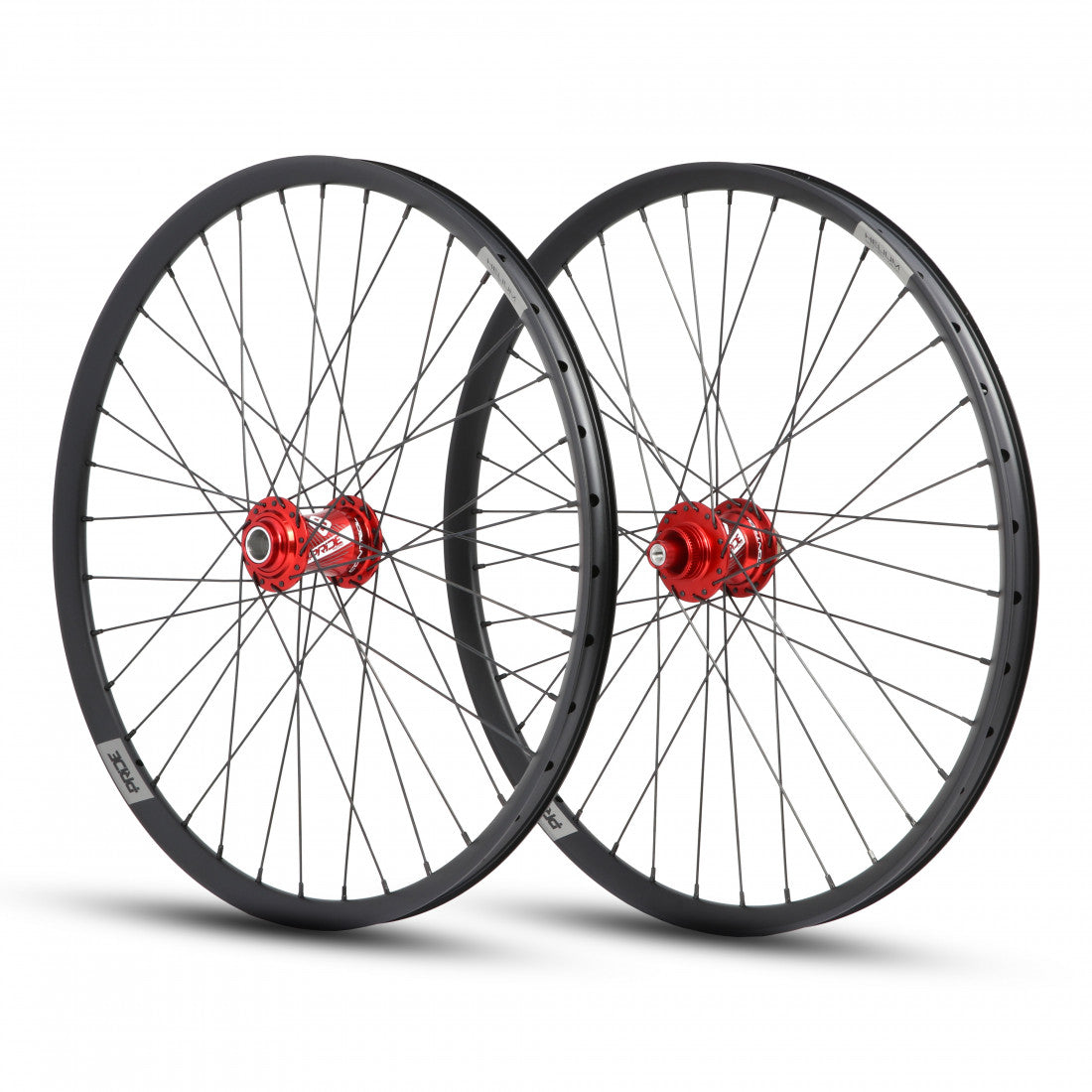

PRDIE 24" (507mm) Control V1 Helium Disc Axes 20/10mm Wheelset Red

The PRIDE 24" (507 mm) Control V1 Helium Disc Axes 20/10 mm Wheelset is developed for BMX Race Cruiser, prioritising an excellent balance between... Read more
Regular price 14.238,00 CZK
Regular price Sale price 14.238,00 CZK
View full details

Description

The PRIDE 24" (507 mm) Control V1 Helium Disc Axes 20/10 mm Wheelset is developed for BMX Race Cruiser, prioritising an excellent balance between lightness, stiffness and reliability. The Helium double-wall 6069-T6 aluminium rims are specially designed for competition to deliver great responsiveness while maintaining excellent resistance to intensive loads. Their design promotes sharp acceleration and precise handling.

The PRIDE Control V1 6061-T6 aluminium hubs are equipped with a 6-pawl mechanism offering 180 points of engagement. This technology ensures near-instantaneous power transfer during starts and accelerations. The Center Lock disc brake mounting and quality bearings contribute to smooth, durable operation in all conditions.

Designed for riders seeking high performance, this wheelset weighs a competitive 1,748 g. Compatible with tyres from 29 to 65 mm, it features a 20x100 mm front axle and a 10x110 mm rear axle with a Shimano freehub body. The rear wheel is supplied with a lockring and spacers to adjust the chainline.

Ref: 15986273649020

Technical information

Use: BMX Race Cruiser
Diameter: 24" (ETRTO 24-507)
Rims: PRIDE Helium Cruiser M24
Rim material: 6069-T6 Aluminium
Construction: Double wall
Number of spokes: 36 front / 36 rear
Rim height: 19 mm
Rim width: 28 mm
Tyre compatibility: 29 to 65 mm (24x1.50" to 24x1.85")
Valve: Presta
Brake compatibility: Centre Lock Disc
V-Brake compatibility: No

Hubs: PRIDE Control V1
Hub material: 6061-T6 Aluminium
Front axle: 20 x 100 mm (axle not included)
Rear axle: 10 x 110 mm
Freehub body: Shimano
Engagement: 180 points / 6 pawls
Front bearing: 6805
Rear bearing: 6902

Front wheel weight: 836 g
Rear wheel weight: 912 g
Pair weight: 1,748 g

Supplied with: lockring and chain line adjustment spacers (rear wheel)
Rim tape: not included
