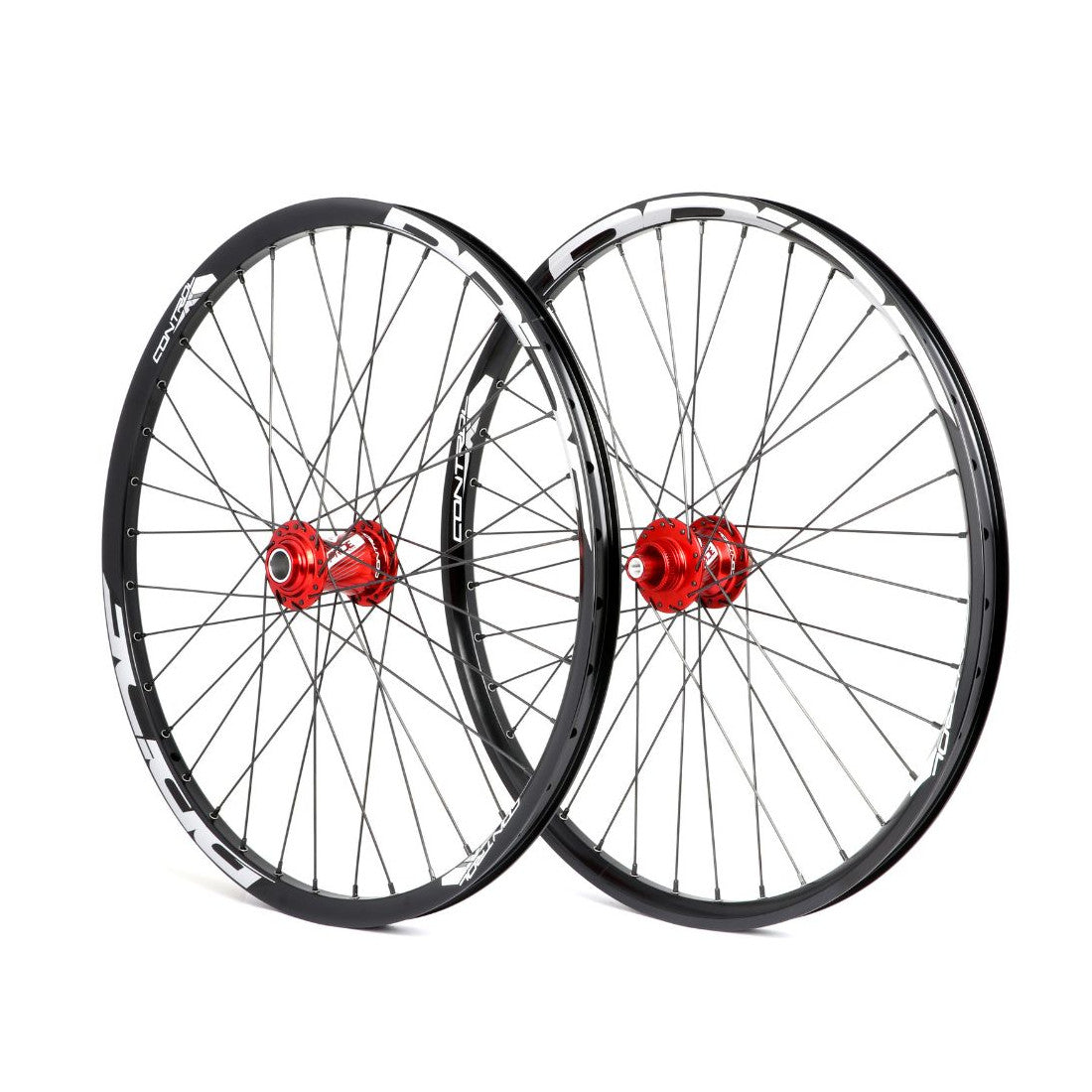

PRIDE 24" (507mm) Control V1 Disc Axes 20/10mm Red Wheel Set

The PRIDE Control V1 Disc 24" (507mm) wheel set is specially developed for 24-inch BMX Race Cruiser bikes seeking an excellent compromise between performance,... Read more
12.943,00 CZK
12.943,00 CZK
View full details

Description

The PRIDE Control V1 Disc 24" (507mm) wheel set is specially developed for 24-inch BMX Race Cruiser bikes seeking an excellent compromise between performance, reliability and responsiveness. Its 6061-T6 aluminium construction with T6 heat treatment produces lightweight and high-performing rims suited to the demands of competition.

The Pride Control Cruiser rims feature a double-wall construction offering an excellent level of stiffness and strength. Combined with the Control 6061-T6 aluminium hubs, they guarantee efficient power transfer. The engagement system with 6 micro-toothed pawls and 180 engagement points ensures fast sprints and an immediate response during starts or exits from corners.

This wheel set features a distinctive red finish and a configuration dedicated to disc-only braking. With its 36 spokes, 19 mm rim profile and compatibility with tyres from 28 to 65 mm, it offers a versatile and robust package for BMX Race riders seeking precision and efficiency on the track.

Ref: 15986273059196

Technical information

General information
Model: PRIDE Control V1 Disc
Type: BMX Race Cruiser wheelset
Diameter: 24" (507 mm)
Use: BMX Race
Brake compatibility: Disc only
Colour: Red

Rim specifications
Model: Pride Control Cruiser
Material: 6061-T6 aluminium
Treatment: T6 heat treatment
Construction: Double wall
Front size: 24" / 23-507
Rear size: 24" / 507
Rim height: 19 mm
Front width: 27 mm
Rear width: 28 mm
Number of spokes: 36
Valve type: Schrader
Compatible tyre section: 28 to 65 mm
V-Brake compatibility: No

Hub specifications
Material: 6061-T6 aluminium

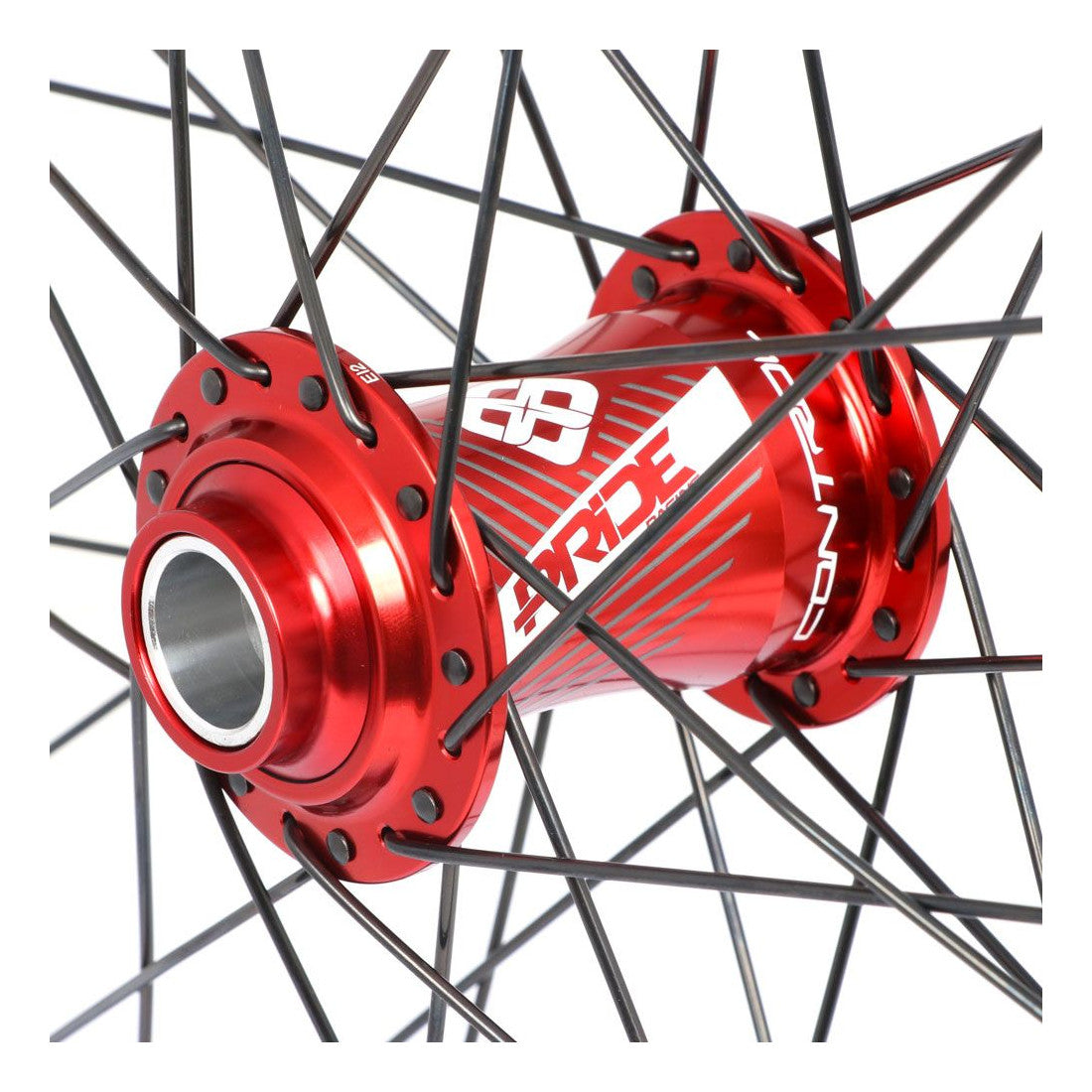

Front hub: 20 x 100 mm

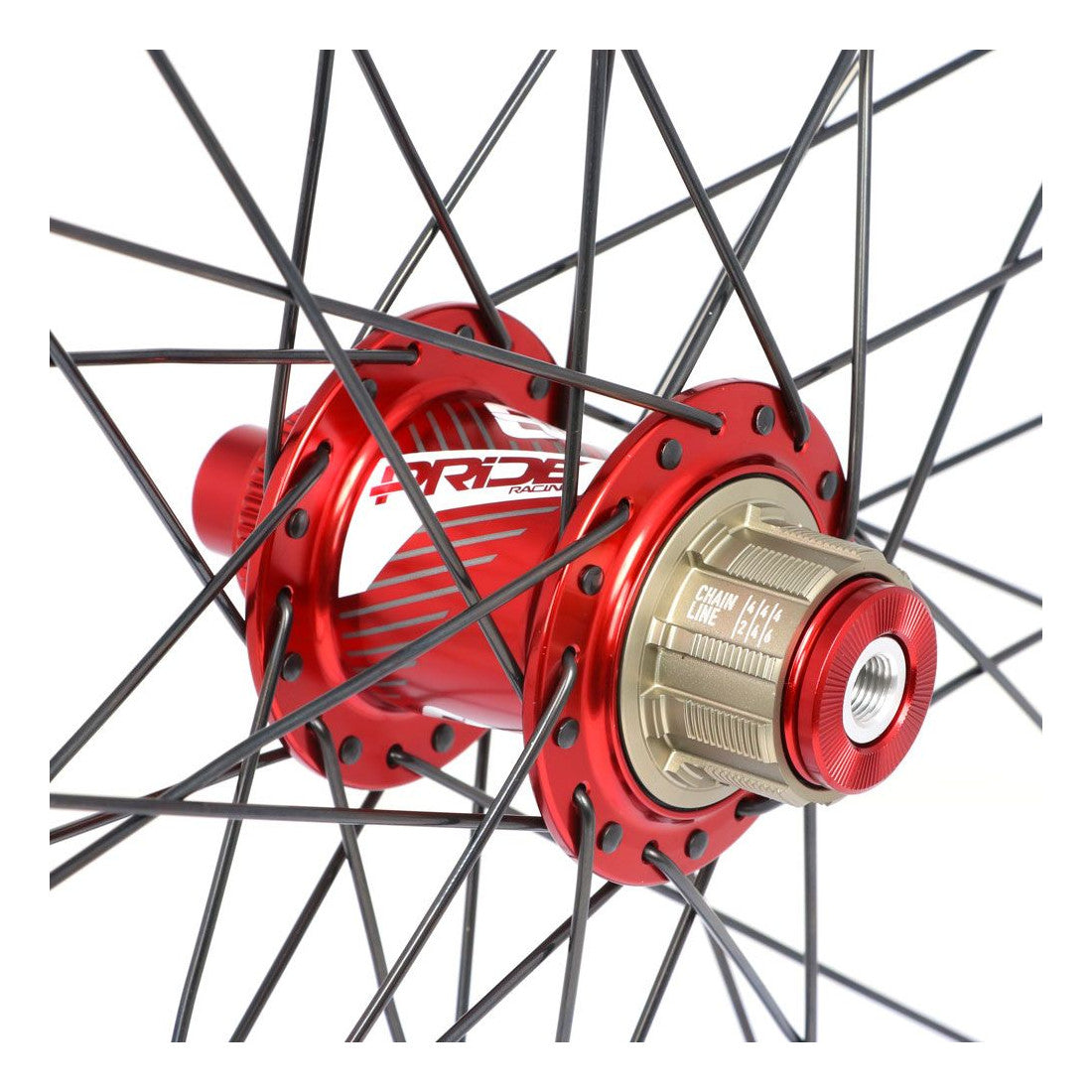

Rear hub: 10 x 110 mm
Front axle: 20 mm (not included)
Disc mount: Center Lock
Freehub body: Shimano
Engagement system: 180 points / 6 pawls
Front bearings: 6805
Rear bearings: 6902

Front wheel: 904 g
Rear wheel: 1085 g
Total pair weight: 1989 g

Additional information
20 mm front axle not included
Rear wheel supplied with lock ring and spacers for chainline adjustment
Rim tape not included
;
