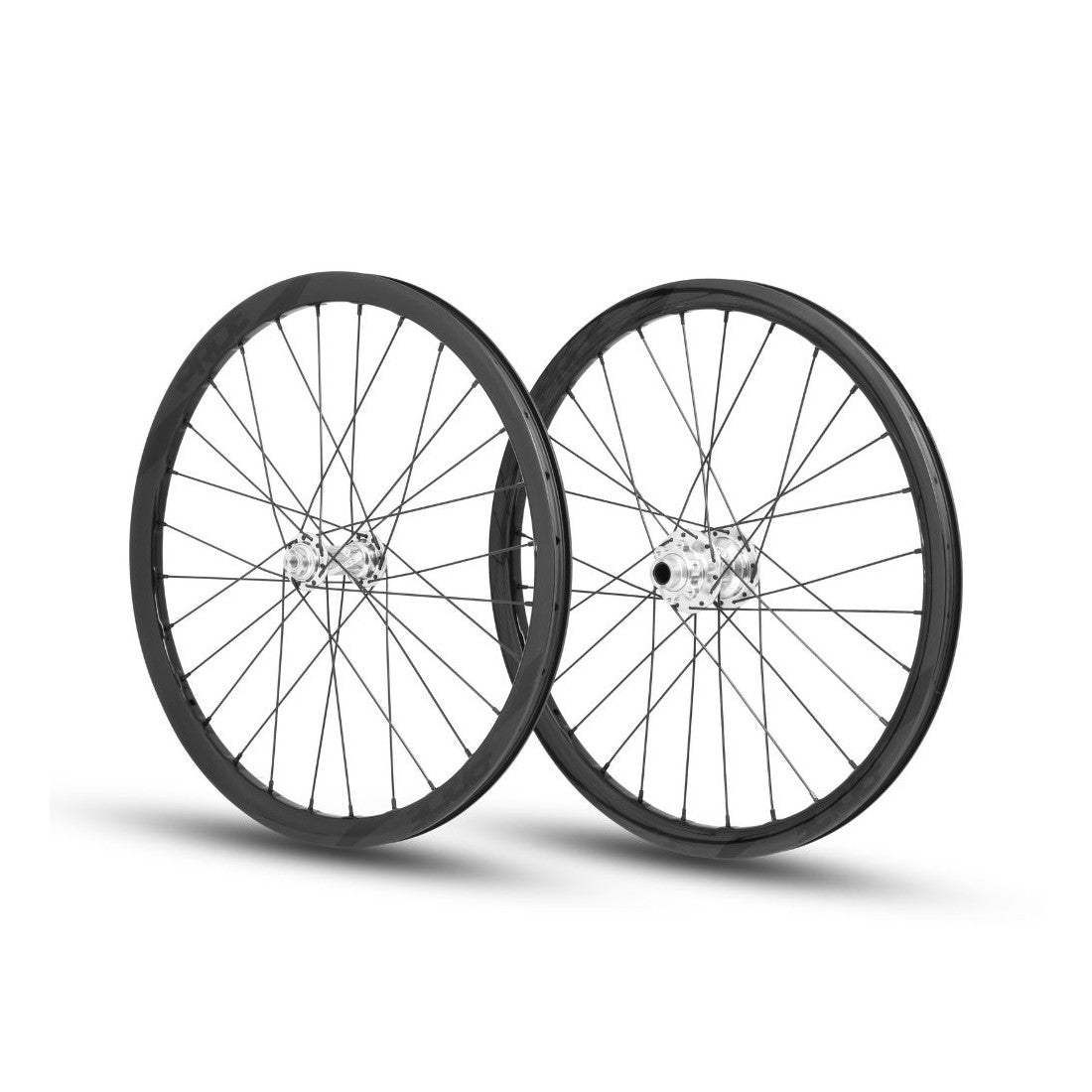

PRIDE 20" (451mm) Carbon Wave Gloss Black Disc Pride Control Axes 10/15mm Polish Wheel Set

The PRIDE 20" (451mm) Carbon Wave Gloss Black Disc Pride Control Axes 10/15mm Polish Wheel Set is developed for BMX Race with a performance-focused... Read more
27.183,00 CZK
27.183,00 CZK
View full details

Description

The PRIDE 20" (451mm) Carbon Wave Gloss Black Disc Pride Control Axes 10/15mm Polish Wheel Set is developed for BMX Race with a performance-focused design. It combines Wave CFR carbon rims with Pride Control hubs, delivering a setup that seeks an optimal balance between weight, stiffness and efficiency.

The Pride Wave CFR rims feature an exclusive design with a square reinforcement at the spoke heads, allowing increased spoke tension for a stiffer wheel. This construction improves steering precision and power transfer during acceleration and sprint phases.

This wheelset features an elegant Gloss Black finish and Pride Control 10/15 mm Polish axes hubs, designed to meet the demands of modern BMX Race. The complete setup represents a premium solution for riders seeking reliable, high-performance components suited to the rigours of competition.

Ref: 15986271977852

Technical information

General information
Diameter: 20 inches
Diameter standard: 451 mm
Use: BMX Race competition
Brake compatibility: Disc
Rim colour: Gloss Black
Hub colour: Polish / Silver

PRIDE Wave CFR rim specifications
Model: Pride Wave CFR
Construction: Toray T700 Carbon
Specific development: BMX Race
Exclusive Pride Racing design
Low profile to minimise wind resistance
Optimised stiffness through rim design
Square reinforcement at each spoke head
Allows higher spoke tension
Improves overall wheel stiffness
Rim weight: less than 300 g
Size / ETRTO: 20" / 16-451
Rim height: 25 mm
Rim width: 23 mm
Number of holes: 28
Valve type: Presta
Tyre compatibility: 20 x 1-1/8" to 20 x 1-3/8"
V-Brake compatibility: Not compatible

PRIDE Control hub specifications
Model: Pride Control
Hub body: CNC machined 6061-T6 aluminium
Engagement system: 6/60
Number of engagement points: 180 points
Front hub spacing: 10 x 100 mm
Rear hub spacing: 15 x 110 mm
Number of holes: 28
Driver standard: Shimano
Disc mount: ISO 6-bolt
Front bearings: 15267
Rear bearings: 18307
Finish: Polish
Total number of spokes: 28 holes per wheel
Transmission: Pawls

Rear wheel supplied with:
Lock ring
Spacers for chainline adjustment
20 mm front axle not included

Complete pair weight: 1455 g
Front wheel: 616 g
Rear wheel: 839 g
;
