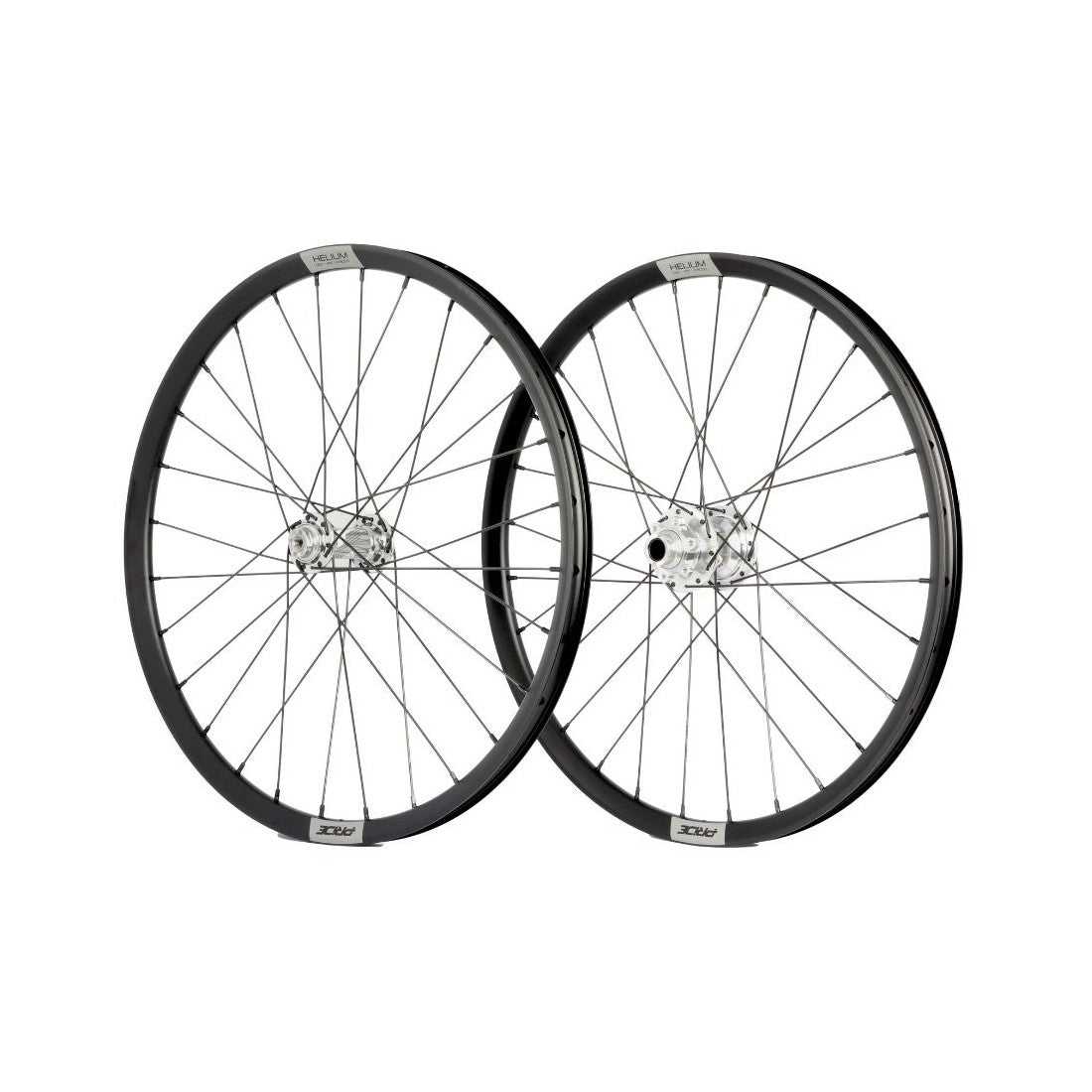

PRIDE 20" (451mm) Control V2 Disc Helium M21 Axes 10/15mm Wheel Set Polish

The PRIDE Control V2 Helium M21 Disc 20" (451mm) wheel set is developed for riders seeking a high-performance, lightweight and reliable assembly for competition.... Read more
Regular price 14.238,00 CZK
Regular price Sale price 14.238,00 CZK
View full details

Description

The PRIDE Control V2 Helium M21 Disc 20" (451mm) wheel set is developed for riders seeking a high-performance, lightweight and reliable assembly for competition. The Pride Helium Expert 6069-T6 aluminium rim benefits from a low profile promoting reactivity, rapid accelerations and excellent manoeuvrability on technical courses.

Thanks to the Arcos System® manufacturing process, the internal design of the rim is optimised to make the best use of the mechanical properties of 6069-T6 aluminium. This technology achieves an excellent balance between lightness, rigidity and resistance, with a rim suited to the demands of intensive sport use.

The Pride Control V2 CNC-machined 6061-T6 aluminium hubs deliver precision and reliability. The rear hub features a 15 mm through-axle and a high-performance engagement system with 180 points of engagement and 6 micro-toothed pawls, ensuring rapid power transfer during re-accelerations.

The ISO6 disc mounting ensures precise rotor fitting and optimal compatibility with frames equipped with disc brakes. The 28 spokes associated with each wheel provide a balanced structure between rigidity and durability, while the polished hub finish adds a refined aesthetic.

With an announced weight of 1,458 g the pair, this PRIDE Control V2 Helium M21 configuration represents a high-performance choice for BMX Race riders seeking a complete, dynamic and durable wheel capable of handling explosive accelerations and the demands of competition circuits.

Ref: 15986273583484

Technical information

Usage: BMX Race / Competition
Diameter: 20" – 451 mm
Model: PRIDE Control V2 Helium M21 Disc
Rim material: Aluminium 6069-T6
Rim model: Pride Helium Expert
Manufacturing process: Arcos System®
Rim type: Double wall
Rim height: 19 mm
Rim width: 25 mm
Number of spokes: 28 per wheel
Valve type: Presta
Tyre compatibility: 20 to 34 mm
20 x 1-1/8"
20 x 1-3/8"
Brake compatibility: Disc only
Disc mount: ISO6

Hub specifications
Model: Pride Control V2
Hub material: Aluminium 6061-T6
Machining: CNC
Front spacing: 100 x 10 mm
Rear spacing: 110 x 15 mm thru-axle
Number of holes: 28
Freehub body: Shimano
Engagement system: 180 points
Pawls: 6 micro-toothed pawls
Engagement: 3 simultaneously active pawls
Front bearing: 15267
Rear bearing: MR18307

Front wheel weight: 615 g
Rear wheel weight: 843 g
Pair weight: 1458 g

15 mm rear thru-axle not included (frame-specific)
Lock ring and spacers included for chainline adjustment
Rim tape not included
