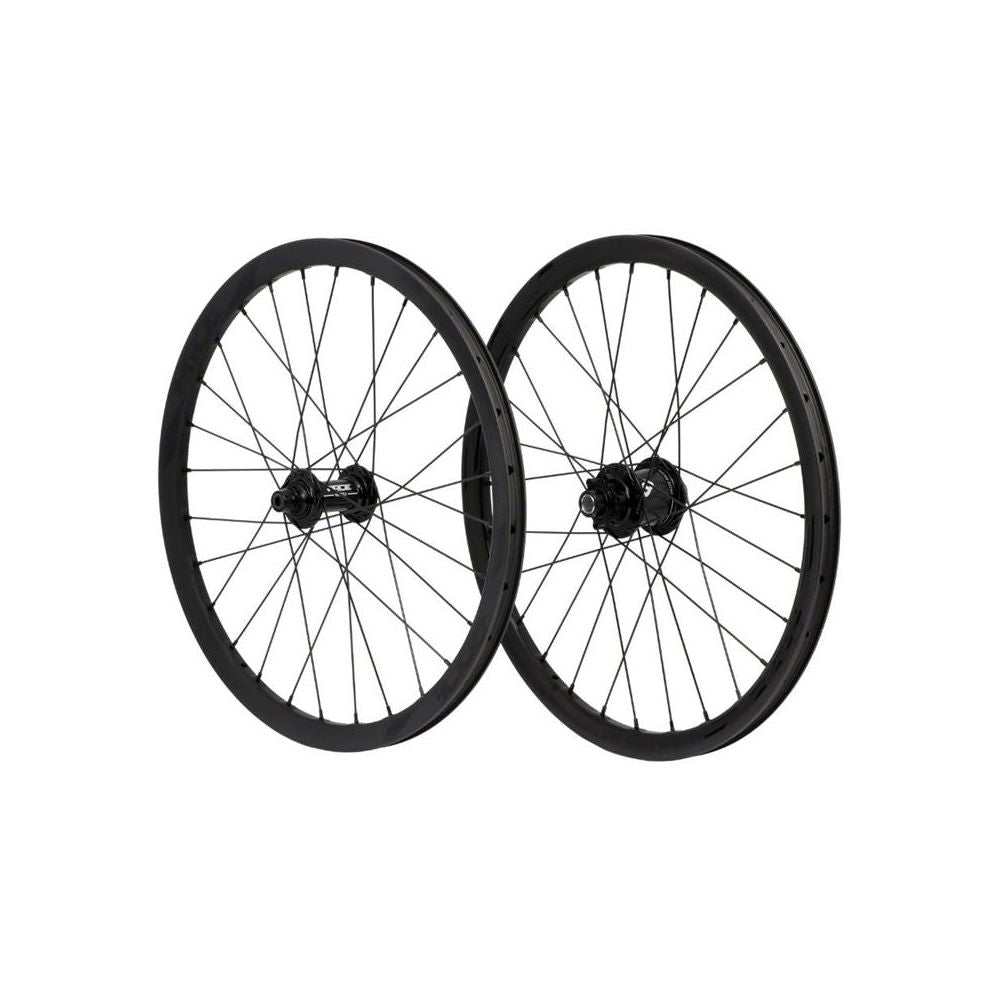

PRIDE 20" (451mm) Carbon Wave Matt Black Disc Matrix Axes 10/15mm Wheel Set Black

The PRIDE Wave Matt Black Matrix wheelset is developed for BMX Race with a design focused on performance, stiffness and reliability. Equipped with Wave... Read more
31.067,00 CZK
31.067,00 CZK
View full details

Description

The PRIDE Wave Matt Black Matrix wheelset is developed for BMX Race with a design focused on performance, stiffness and reliability. Equipped with Wave CFR Toray T700 carbon rims and Matrix 6061-T6 aluminium hubs, this wheelset benefits from a premium construction designed to meet the demands of competitive riders.

The rims feature a particularly low profile that reduces wind resistance while optimising stiffness. Their design incorporates a square reinforcement at the spoke heads, allowing higher spoke tension to improve steering precision and power transfer.

The Matrix CNC hubs use a high-performance engagement system with 12 pawls and 216 engagement points, ensuring a fast response during accelerations. With their Matt Black finish, these wheels combine understated aesthetics, light weight and efficiency for riders seeking reliable, high-performance equipment on the BMX track.

Ref: 15986272141692

Technical information

PRIDE Wave CFR Rims
Model: Wave CFR
Use: BMX Race
Diameter: 20 inches
Standard: 451 / 16-451
Material: Toray T700 Carbon
Rim height: 25 mm
Rim width: 23 mm
Number of holes: 28
Profile: Low profile
Technology: Square reinforcement at spoke heads
Objective: Increased spoke tension and improved stiffness
Brake compatibility: Not compatible with V-Brake
Valve type: Presta
Tyre compatibility:
20 x 1-1/8"
20 x 1-3/8"

PRIDE Matrix Front Hub
Brand: Matrix
Material: Aluminium
Construction: CNC machined body
Axle spacing: 10 x 100 mm
Number of holes: 28
Disc mount: ISO 6-bolt
Bearings: 6902
Colour: Black

PRIDE Matrix Rear Hub
Brand: Matrix
Material: Aluminium 6061-T6
Axle spacing: 15 x 110 mm
Number of holes: 28
Freehub body standard: Shimano
Engagement system: 12 pawls
Number of engagement points: 216 points
Disc mount: ISO 6-bolt
Bearings: 18307 (18 x 30 x 7 mm)
Supplied with:
Lock ring
Spacers for chainline adjustment

General specifications
Type: Complete wheelset front + rear
Discipline: BMX Race
Main material: Carbon
Colour: Matt black
Axles:
Front: 10 mm
Rear: 15 mm
Drivetrain: Pawl system
Braking: Disc

Front wheel weight: 635 g
Rear wheel weight: 855 g
Pair weight: 1490 g
;
