PRIDE 20" (451mm) Control V2 Disc 10/15mm Axle Wheel Set Blue

The PRIDE Control V2 20" (451) Wheel Set is a wheelset specially designed for BMX Race, combining efficiency, stiffness and reliability for riders seeking... Read more
12.943,00 CZK
12.943,00 CZK
View full details

Description

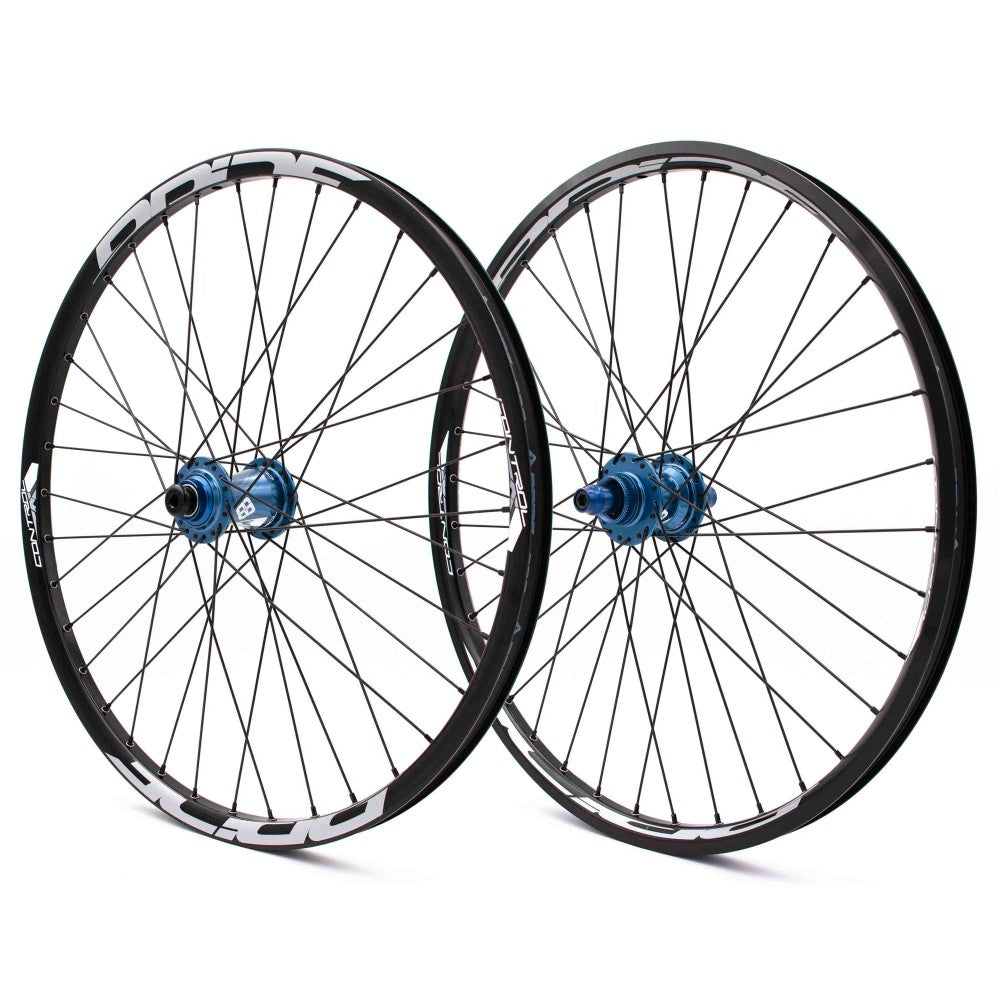

The PRIDE Control V2 20" (451) Wheel Set is a wheelset specially designed for BMX Race, combining efficiency, stiffness and reliability for riders seeking a high-performance track wheel. This pair combines Control Expert 6061-T6 aluminium rims and PRIDE Control hubs to achieve a balanced build capable of handling the intense demands of explosive starts and repeated power pick-up.

Thanks to their 6061-T6 aluminium construction with T6 heat treatment, the rims offer an excellent compromise between lightness, strength and efficiency. Their double-wall construction improves the overall stiffness of the wheel while ensuring good capacity to absorb the stresses encountered on BMX Race tracks.

The PRIDE Control hubs complete this build with a high-performance engagement system. The mechanism comprising 6 micro-toothed pawls providing 180 engagement points enables fast and efficient power pick-up, ideal when exiting corners or accelerating after jumps. The Polish finish also delivers premium aesthetic integration on custom BMX builds

Ref: 15986271846780

Technical information

General information
Brand: PRIDE Racing
Model: Control V2
Type: Complete wheelset
Discipline: BMX Race
Diameter: 20 inches
Dimension: 451 mm
Use: Competition / intensive training
Colour: Polish
Brake compatibility: Disc only
Setup: Front wheel + rear wheel
Total weight: 1776 g
Front wheel weight: 778 g
Rear wheel weight: 998 g

PRIDE Control Expert rims
Material: Aluminium 6061-T6
Treatment: T6 heat treatment
Construction: Double wall
Size / ETRTO: 20" / 16-451
Rim height: 20 mm
Rim width: 23 mm
Number of spokes: 28 holes
Valve type: Presta
Tyre compatibility:
20 x 1-1/8"
20 x 1-3/8"
Section between 20 and 34 mm
V-Brake compatibility: No

PRIDE Control front hub
Specifications
Material: Aluminium 6061-T6
Over locknut distance: 10 x 100 mm
Axle: 10 mm
Number of spokes: 28 holes
Bearing: 15267
Disc mount: ISO6
Finish: Polish
BMX Race-oriented design to optimise stiffness and efficiency

PRIDE Control rear hub
Specifications
Material: Aluminium 6061-T6
Over locknut distance: 15 x 110 mm
Rear axle: 15 mm
Driver standard: Shimano
Number of spokes: 28 holes
Bearing: 18307
Disc mount: ISO6
Engagement system: 180 points
Mechanism: 6 micro-toothed pawls
Fast engagement for immediate acceleration

Included equipment and additional information
Rear wheel delivered with:
Lock ring
Chain line adjustment spacers
Rim tape not included
Thru-axles not included
;
