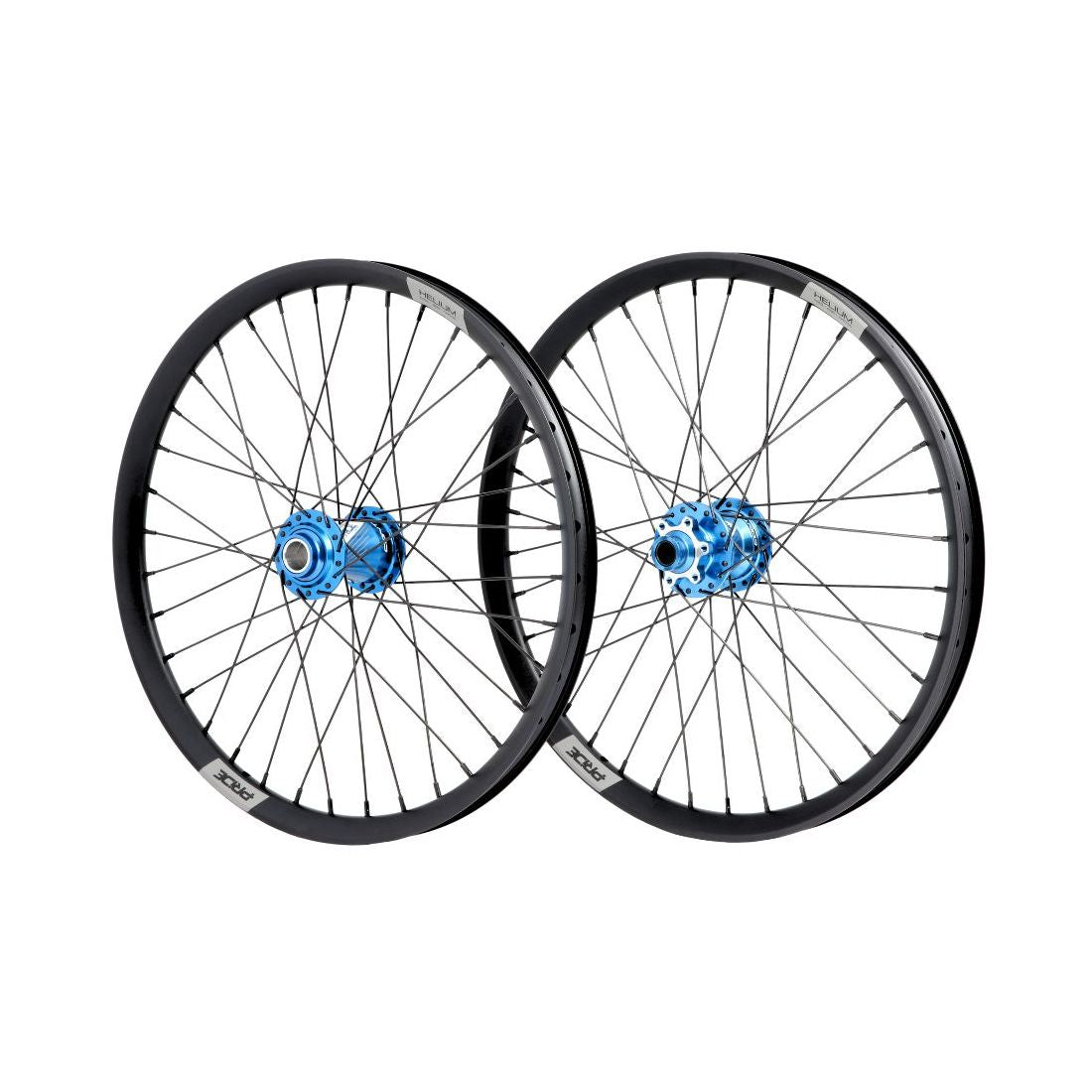

PRIDE 20" (406mm) Control V2 Disc Helium M24 15/20mm Axle Wheelset Blue

The PRIDE Control V2 Helium M24 wheelset is developed for BMX Race riders seeking a high-performance, lightweight and reliable setup. This 20-inch (406 mm)... Read more
14.238,00 CZK
14.238,00 CZK
View full details

Description

The PRIDE Control V2 Helium M24 wheelset is developed for BMX Race riders seeking a high-performance, lightweight and reliable setup. This 20-inch (406 mm) version combines Helium M24 6069-T6 aluminium rims with CNC-machined Control V2 hubs, offering an excellent balance of reactivity, rigidity and strength for competition.

The Pride Helium M24 rim benefits from the Arcos System® manufacturing process, enabling precise internal design and optimisation of the aluminium properties. Its low-profile section promotes rapid acceleration, great manoeuvrability and excellent responsiveness during sprint or corner exit phases.

The Control V2 6061-T6 aluminium hubs feature tall flanges that increase the overall rigidity. The rear hub integrates an engagement system with 180 points and 6 micro-toothed pawls, ensuring immediate power transmission. The ISO6 disc mounting completes this performance-oriented setup.

Ref: 15986272207228

Technical information

Rims
Model: Pride Helium Pro M24
Diameter: 20 inches
ETRTO dimension: 24-406
Material: Aluminium 6069-T6
Construction: Double wall
Rim height: 19 mm
Rim width: 28 mm
Number of spokes: 36
Valve type: Presta
Tyre compatibility: 29 to 65 mm
20 x 1.40"
20 x 1.85"
Braking compatibility: Disc only

Hubs
Front hub
Model: Pride Control V2
Material: Aluminium 6061-T6
Axle spacing: 20 x 100 mm
Axle: 20 mm through axle (not included)
Number of holes: 36
Bearing: 6805
High flanges for improved stiffness
Rear hub
Model: Pride Control V2
Material: Aluminium 6061-T6
Axle spacing: 15 x 110 mm
Axle: 15 mm through axle (not included)
Freehub standard: Shimano
Driver: Aluminium 7075-T6
Engagement: 180 points
System: 6 micro-toothed pawls with 3 by 3 engagement
Disc mount: ISO6
Bearing: MR18307
Assembly and weight
Type: Complete wheelset front + rear
Spoking: 36 spokes per wheel
Hub colour: Blue

Front wheel weight: 722 g
Rear wheel weight: 844 g
Total pair weight: 1566 g

Additional information
Lock ring and chainline adjustment spacers included for the rear wheel
Rim tape not included
15 mm through axle not included (frame-specific)
;
